Step1: Product
MCC (Micro Commercial Components) MC3541A-TP

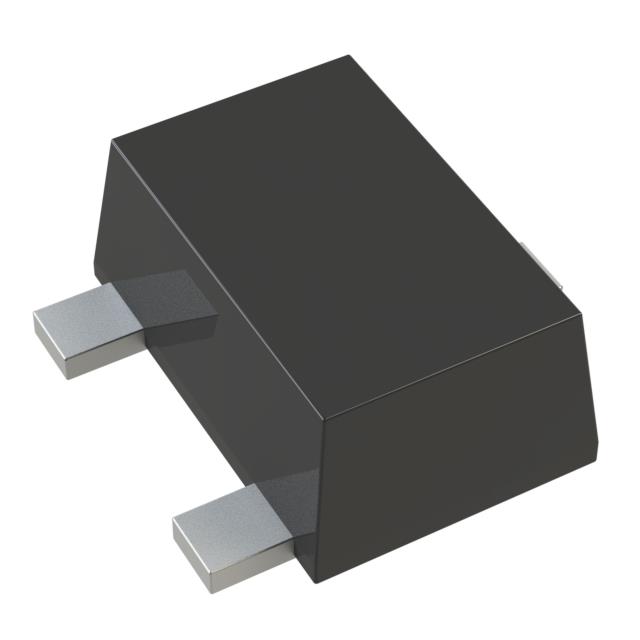

Image shown is a representation only
Manufacturer
Manufacturer No
MC3541A-TP
Quantity
7200
Availability
In Stock
Package
SOT-723
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
N-CHANNEL MOSFET,SOT-723
Detailed Description
N-Channel 30 V 300mA 270mW Surface Mount SOT-723
DataSheet
Mfr
MCC (Micro Commercial Components)
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
SOT-723
Vgs(th) (Max) @ Id
1.45V @ 250µA
Base Product Number
MC3541
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
3Ohm @ 500mA, 10V
Power Dissipation (Max)
270mW
Supplier Device Package
SOT-723
Gate Charge (Qg) (Max) @ Vgs
1.2 nC @ 10 V
Drain to Source Voltage (Vdss)
30 V
Input Capacitance (Ciss) (Max) @ Vds
28 pF @ 30 V
Drive Voltage (Max Rds On, Min Rds On)
2.5V, 10V
Current - Continuous Drain (Id) @ 25°C
300mA
| Attribute | Value |
|---|---|
| Mfr | MCC (Micro Commercial Components) |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | SOT-723 |
| Vgs(th) (Max) @ Id | 1.45V @ 250µA |
| Base Product Number | MC3541 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 500mA, 10V |
| Power Dissipation (Max) | 270mW |
| Supplier Device Package | SOT-723 |
| Gate Charge (Qg) (Max) @ Vgs | 1.2 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 28 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 300mA |
