Step1: Product
MaxLinear, Inc. XR18W753IL48-F

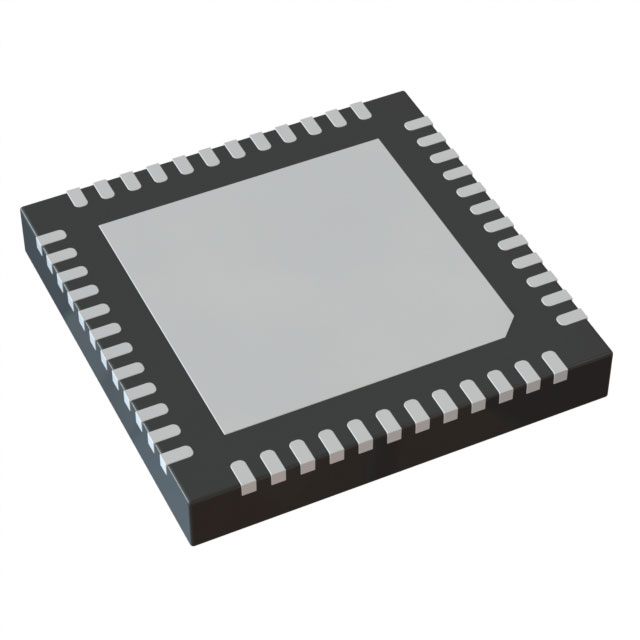

Image shown is a representation only
Manufacturer
Manufacturer No
XR18W753IL48-F
Package
48-VFQFN Exposed Pad
Packaging
Tray
Description
IC RF TXRX ISM<1GHZ 48QFN
Detailed Description
IC RF TxRx Only General ISM < 1GHz 868MHz ~ 956MHz 48-VFQFN Exposed Pad
DataSheet
Mfr
MaxLinear, Inc.
Type
TxRx Only
Frequency
868MHz ~ 956MHz
Packaging
Tray
Modulation
O-QPSK
Part Status
Obsolete
Sensitivity
-94dBm
Mounting Type
Surface Mount
Package / Case
48-VFQFN Exposed Pad
Power - Output
0dBm
Data Rate (Max)
250kbps
Voltage - Supply
2.2V ~ 3.6V
Serial Interfaces
I2C
RF Family/Standard
General ISM < 1GHz
Current - Receiving
19mA
DigiKey Programmable
Not Verified
Operating Temperature
-40°C ~ 85°C
Current - Transmitting
22mA
Supplier Device Package
48-QFN (7x7)
| Attribute | Value |
|---|---|
| Mfr | MaxLinear, Inc. |
| Type | TxRx Only |
| Frequency | 868MHz ~ 956MHz |
| Packaging | Tray |
| Modulation | O-QPSK |
| Part Status | Obsolete |
| Sensitivity | -94dBm |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 0dBm |
| Data Rate (Max) | 250kbps |
| Voltage - Supply | 2.2V ~ 3.6V |
| Serial Interfaces | I2C |
| RF Family/Standard | General ISM < 1GHz |
| Current - Receiving | 19mA |
| DigiKey Programmable | Not Verified |
| Operating Temperature | -40°C ~ 85°C |
| Current - Transmitting | 22mA |
| Supplier Device Package | 48-QFN (7x7) |
