Step1: Product
Maswell Communication Tech. AN_MASTER_005MIMO

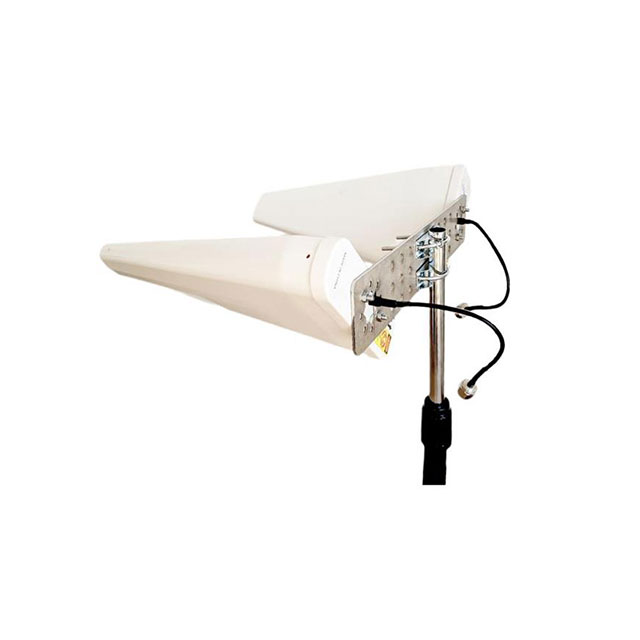

Image shown is a representation only
Manufacturer
Manufacturer No
AN_MASTER_005MIMO
Packaging
Box
Description
High Gain 2X2MIMO Ultra Wideband
Detailed Description
RF ANTENNA 5G Log Periodic N Type Male, SMA Male Bolt
DataSheet
Gain
9.5dBi
VSWR
2
Features
Cable - 4m
Packaging
Box
Part Status
Active
Termination
N Type Male, SMA Male
Antenna Type
Log Periodic
Applications
5G
Height (Max)
2.520" (64.00mm)
Manufacturer
Maswell Communication Tech.
Mounting Type
Bolt
Frequency Group
Wide Band
Frequency Range
600MHz ~ 6GHz
Number of Bands
1
Ingress Protection
IP66
RF Family/Standard
Cellular
Frequency (Center/Band)
3.3GHz
| Attribute | Value |
|---|---|
| Gain | 9.5dBi |
| VSWR | 2 |
| Features | Cable - 4m |
| Packaging | Box |
| Part Status | Active |
| Termination | N Type Male, SMA Male |
| Antenna Type | Log Periodic |
| Applications | 5G |
| Height (Max) | 2.520" (64.00mm) |
| Manufacturer | Maswell Communication Tech. |
| Mounting Type | Bolt |
| Frequency Group | Wide Band |
| Frequency Range | 600MHz ~ 6GHz |
| Number of Bands | 1 |
| Ingress Protection | IP66 |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 3.3GHz |
