Step1: Product
Mallory Sonalert Products Inc. AST1109MLQ

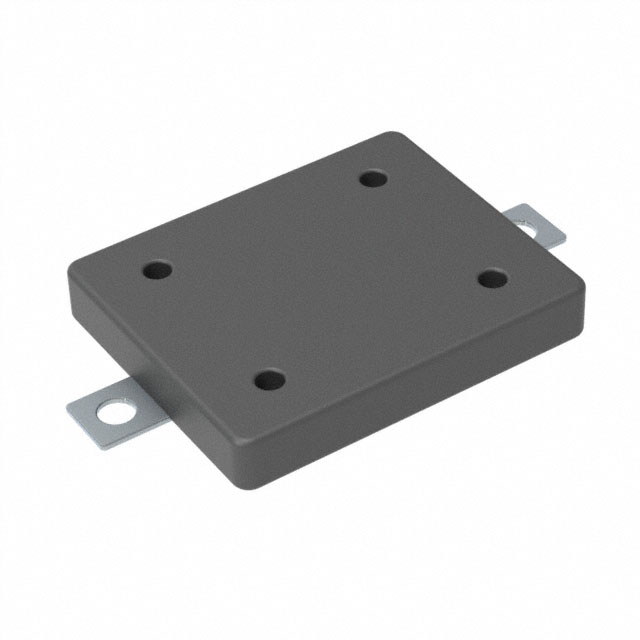

Image shown is a representation only
Manufacturer
Manufacturer No
AST1109MLQ
Packaging
Strip
Description
BUZZER PIEZO 5V 12X12MM" W SMD
Detailed Description
Buzzers Transducer, Externally Driven Piezo 5 V 1mA 4.1kHz 73dB @ 5V, 10cm Surface Mount Solder Pads
DataSheet
Series
AST
Frequency
4.1kHz
Packaging
Strip
Input Type
Peak-Peak Signal
Technology
Piezo
Part Status
Active
Termination
Solder Pads
Manufacturer
Mallory Sonalert Products Inc.
Mounting Type
Surface Mount
Port Location
Top
Voltage Range
1 ~ 20V
Operating Mode
Single Tone
Voltage - Rated
5 V
Current - Supply
1mA
Driver Circuitry
Transducer, Externally Driven
Size / Dimension
0.433" L x 0.354" W (11.00mm x 9.00mm)
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-20°C ~ 70°C
Sound Pressure Level (SPL)
73dB @ 5V, 10cm
| Attribute | Value |
|---|---|
| Series | AST |
| Frequency | 4.1kHz |
| Packaging | Strip |
| Input Type | Peak-Peak Signal |
| Technology | Piezo |
| Part Status | Active |
| Termination | Solder Pads |
| Manufacturer | Mallory Sonalert Products Inc. |
| Mounting Type | Surface Mount |
| Port Location | Top |
| Voltage Range | 1 ~ 20V |
| Operating Mode | Single Tone |
| Voltage - Rated | 5 V |
| Current - Supply | 1mA |
| Driver Circuitry | Transducer, Externally Driven |
| Size / Dimension | 0.433" L x 0.354" W (11.00mm x 9.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -20°C ~ 70°C |
| Sound Pressure Level (SPL) | 73dB @ 5V, 10cm |
