Step1: Product
Major League Electronics SSHQ-123-D-02-GT-LF

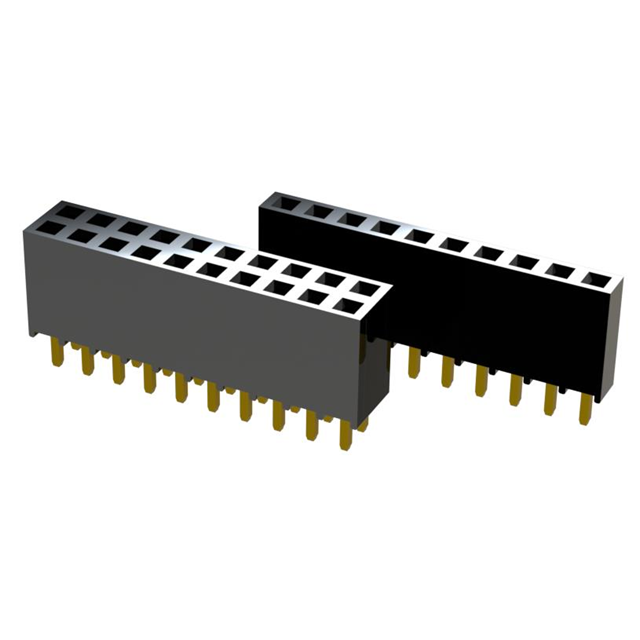

Image shown is a representation only
Manufacturer
Manufacturer No
SSHQ-123-D-02-GT-LF
Packaging
Bag
Description
.100 Socket
Detailed Description
46 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
Mfr
Major League Electronics
Style
Board to Board
Series
SSHQ-1
Packaging
Bag
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Socket
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.334" (8.48mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
46
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.100" (2.54mm)
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Major League Electronics |
| Style | Board to Board |
| Series | SSHQ-1 |
| Packaging | Bag |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Socket |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.334" (8.48mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 46 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.100" (2.54mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
