Step1: Product
Major League Electronics SMSS-515-D-06-G-TR-K-LF

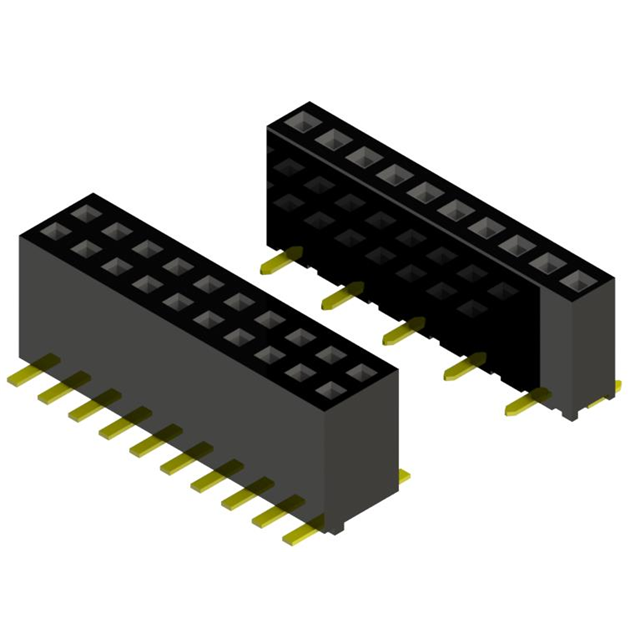

Image shown is a representation only
Manufacturer
Manufacturer No
SMSS-515-D-06-G-TR-K-LF
Packaging
Bag
Description
.050 x .050 Socket
Detailed Description
30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
DataSheet
Mfr
Major League Electronics
Style
Board to Board
Series
SMSS-5
Features
Pick and Place
Packaging
Bag
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.181" (4.60mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
30
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Gold
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
Flash
Contact Finish Thickness - Mating
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Mfr | Major League Electronics |
| Style | Board to Board |
| Series | SMSS-5 |
| Features | Pick and Place |
| Packaging | Bag |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.181" (4.60mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
