Magnetics, a division of Spang & Co. CR45810IC

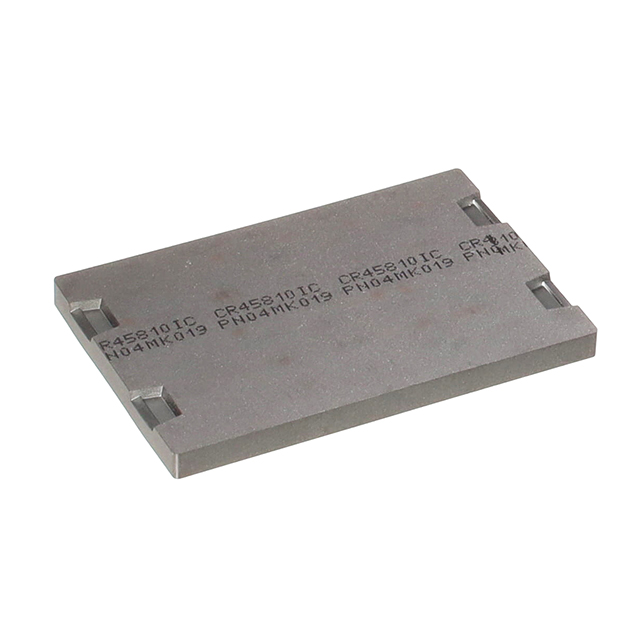

Image shown is a representation only
Manufacturer
Manufacturer No
CR45810IC
Packaging
Bulk
Description
CLIP SLOT I-CORE
Detailed Description
Uncoated R Ferrite Core Planar E/I Type 2.300" (58.42mm) Length 1.500" (38.10mm) Width Diameter 0.160" (4.06mm) Height
DataSheet
Gap
Ungapped
Width
1.500" (38.10mm)
Finish
Uncoated
Height
0.160" (4.06mm)
Length
2.300" (58.42mm)
Material
R
Core Type
Planar E/I
Packaging
Bulk
Part Status
Active
Manufacturer
Magnetics, a division of Spang & Co.
Inductance Factor (Al)
9.821 µH
Effective Area (Ae) mm²
305.0
Effective Length (le) mm
68.3
Initial Permeability (µi)
2300
Effective Magnetic Volume (Ve) mm³
20829.0
Minimum Core Cross Section (Amin) mm²
281.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 1.500" (38.10mm) |
| Finish | Uncoated |
| Height | 0.160" (4.06mm) |
| Length | 2.300" (58.42mm) |
| Material | R |
| Core Type | Planar E/I |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Magnetics, a division of Spang & Co. |
| Inductance Factor (Al) | 9.821 µH |
| Effective Area (Ae) mm² | 305.0 |
| Effective Length (le) mm | 68.3 |
| Initial Permeability (µi) | 2300 |
| Effective Magnetic Volume (Ve) mm³ | 20829.0 |
| Minimum Core Cross Section (Amin) mm² | 281.0 |
