Step1: Product
Magnetics, a division of Spang & Co. 00K8020E040

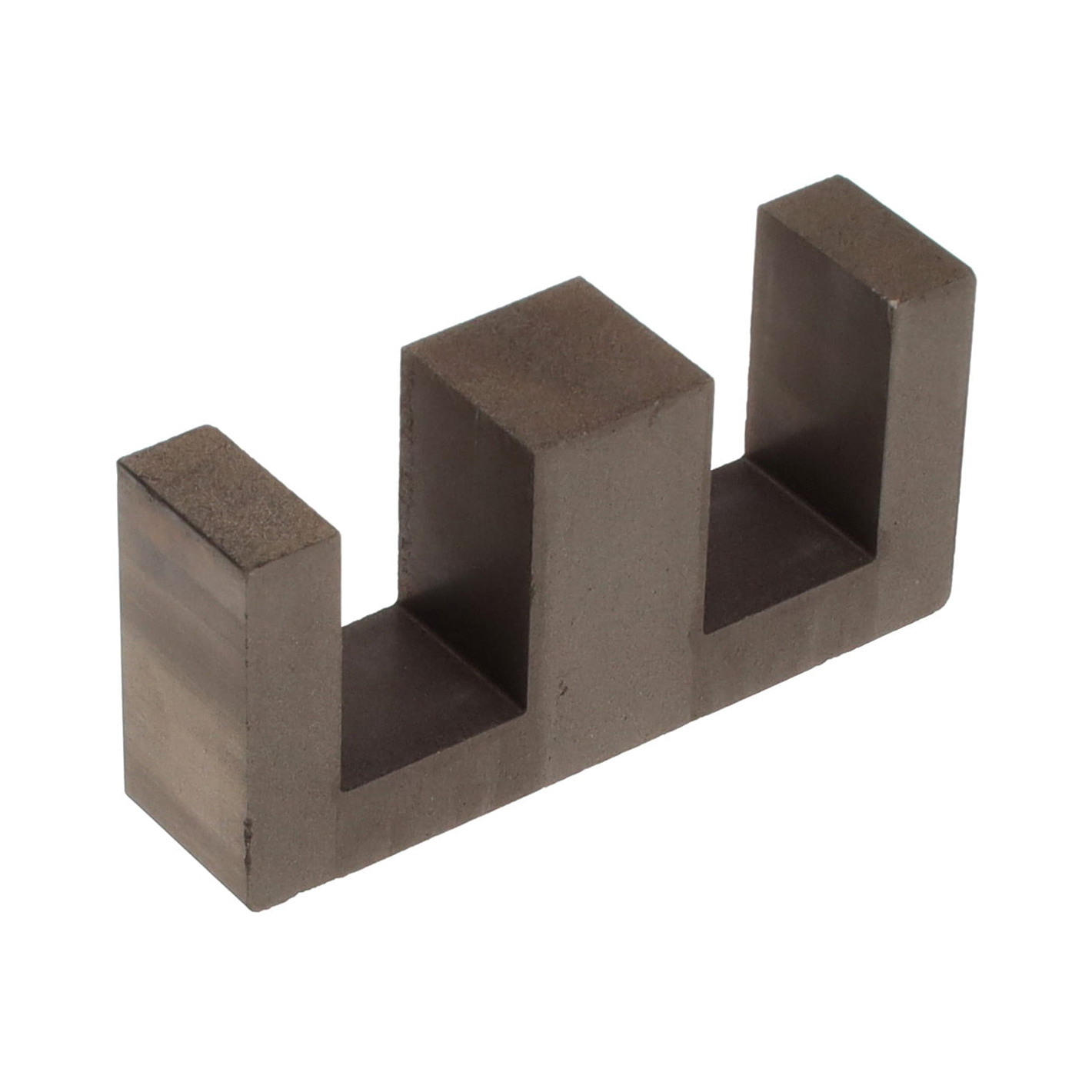

Image shown is a representation only
Manufacturer
Manufacturer No
00K8020E040
Packaging
Bulk
Description
FERRITE CORE E 145NH KOOL MU
Detailed Description
Uncoated Kool Mu Ferrite Core E Type 3.150" (80.00mm) Length 0.780" (19.80mm) Width Diameter 1.500" (38.10mm) Height
DataSheet
Gap
Ungapped
Width
0.780" (19.80mm)
Finish
Uncoated
Height
1.500" (38.10mm)
Length
3.150" (80.00mm)
Material
Kool Mu
Core Type
E
Packaging
Bulk
Tolerance
±8%
Part Status
Active
Manufacturer
Magnetics, a division of Spang & Co.
Inductance Factor (Al)
145 nH
Effective Area (Ae) mm²
389.0
Effective Length (le) mm
185.0
Initial Permeability (µi)
40
Effective Magnetic Volume (Ve) mm³
72000.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 0.780" (19.80mm) |
| Finish | Uncoated |
| Height | 1.500" (38.10mm) |
| Length | 3.150" (80.00mm) |
| Material | Kool Mu |
| Core Type | E |
| Packaging | Bulk |
| Tolerance | ±8% |
| Part Status | Active |
| Manufacturer | Magnetics, a division of Spang & Co. |
| Inductance Factor (Al) | 145 nH |
| Effective Area (Ae) mm² | 389.0 |
| Effective Length (le) mm | 185.0 |
| Initial Permeability (µi) | 40 |
| Effective Magnetic Volume (Ve) mm³ | 72000.0 |
