Step1: Product

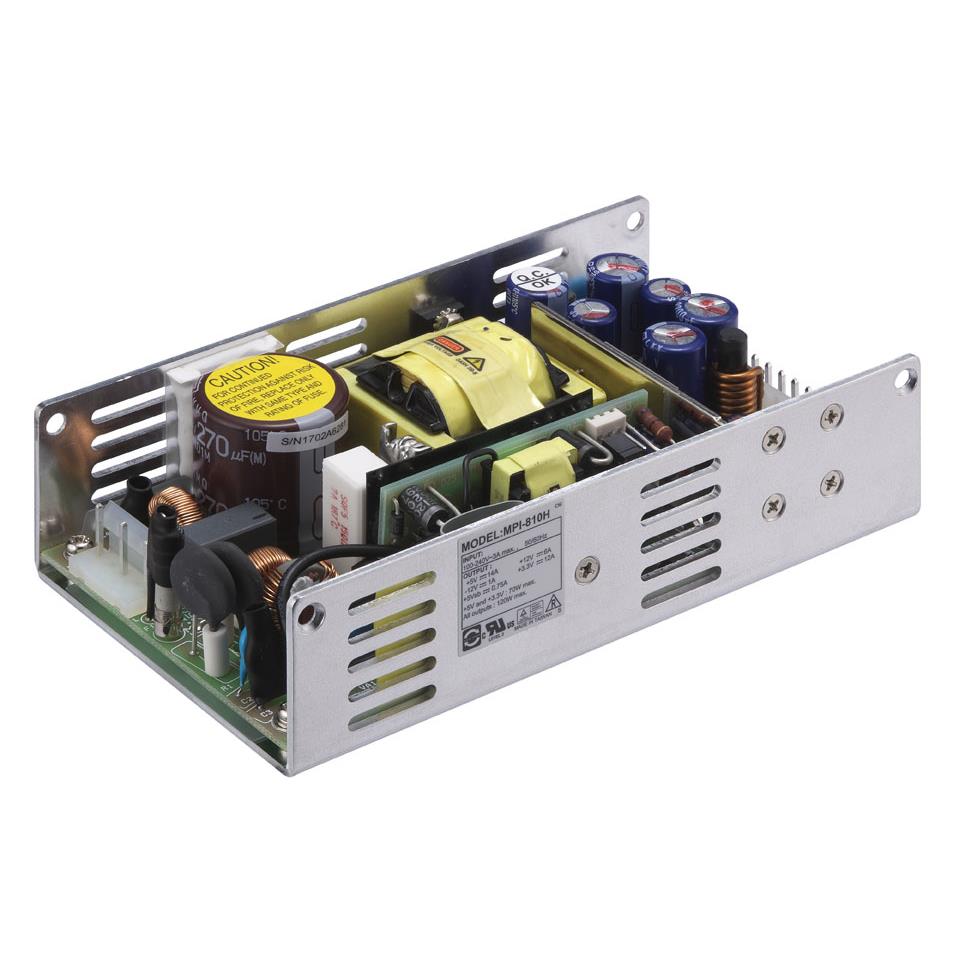

Magic Power MPD-810H
Image shown is a representation only
Manufacturer
Manufacturer No
MPD-810H
Packaging
Bulk
Description
DC-DC ATX PSU, 85W convection, 1
Detailed Description
Open Frame DC DC Converter 4 Output 5V 3.3V 12V -12V 1A, 4A, 8A, 10A 30V Input
DataSheet
Type
Open Frame
Series
MPD-810H (120W)
Packaging
Bulk
Efficiency
70%
Part Status
Active
Applications
ITE (Commercial)
Manufacturer
Magic Power
Mounting Type
Chassis Mount
Power (Watts)
136W
Approval Agency
CSA, UL, VDE
Size / Dimension
6.00" L x 3.30" W x 1.50" H (152.4mm x 83.8mm x 38.1mm)
Number of Outputs
4
Voltage - Output 1
5V
Voltage - Output 2
3.3V
Voltage - Output 3
12V
Voltage - Output 4
-12V
Operating Temperature
0°C ~ 50°C
Voltage - Input (Max)
30V
Voltage - Input (Min)
10V
Current - Output (Max)
1A, 4A, 8A, 10A
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | MPD-810H (120W) |
| Packaging | Bulk |
| Efficiency | 70% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Manufacturer | Magic Power |
| Mounting Type | Chassis Mount |
| Power (Watts) | 136W |
| Approval Agency | CSA, UL, VDE |
| Size / Dimension | 6.00" L x 3.30" W x 1.50" H (152.4mm x 83.8mm x 38.1mm) |
| Number of Outputs | 4 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Operating Temperature | 0°C ~ 50°C |
| Voltage - Input (Max) | 30V |
| Voltage - Input (Min) | 10V |
| Current - Output (Max) | 1A, 4A, 8A, 10A |
