Step1: Product

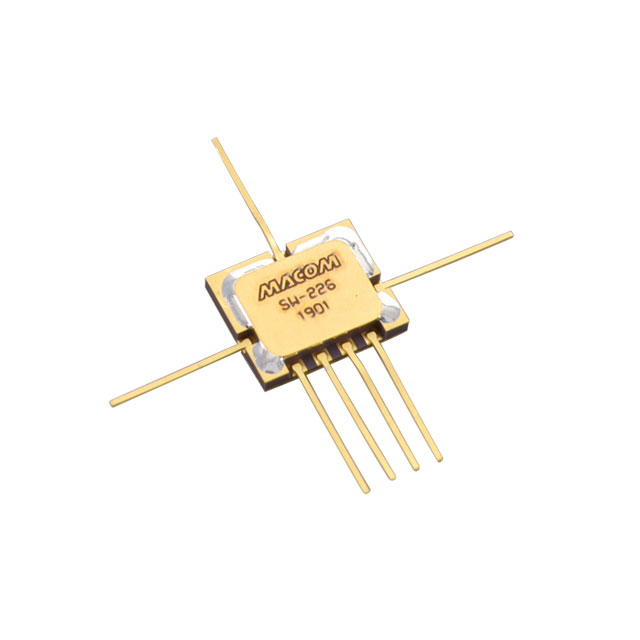

MACOM Technology Solutions SW-226-PIN
Image shown is a representation only
Manufacturer
Manufacturer No
SW-226-PIN
Package
CR-2
Packaging
Tray
Description
IC RF SWITCH SPDT 4GHZ CR-2
Detailed Description
RF Switch IC Cellular, GPS SPDT 50Ohm CR-2
DataSheet
Circuit
SPDT
RF Type
Cellular, GPS
Impedance
50Ohm
Isolation
25dB (min)
Packaging
Tray
Part Status
Active
Manufacturer
MACOM Technology Solutions
Mounting Type
Surface Mount
Insertion Loss
1.5dB (max)
Package / Case
CR-2
Test Frequency
4GHz
Frequency Range
0Hz ~ 4GHz
Base Product Number
SW-226
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
CR-2
| Attribute | Value |
|---|---|
| Circuit | SPDT |
| RF Type | Cellular, GPS |
| Impedance | 50Ohm |
| Isolation | 25dB (min) |
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | MACOM Technology Solutions |
| Mounting Type | Surface Mount |
| Insertion Loss | 1.5dB (max) |
| Package / Case | CR-2 |
| Test Frequency | 4GHz |
| Frequency Range | 0Hz ~ 4GHz |
| Base Product Number | SW-226 |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | CR-2 |
