Step1: Product

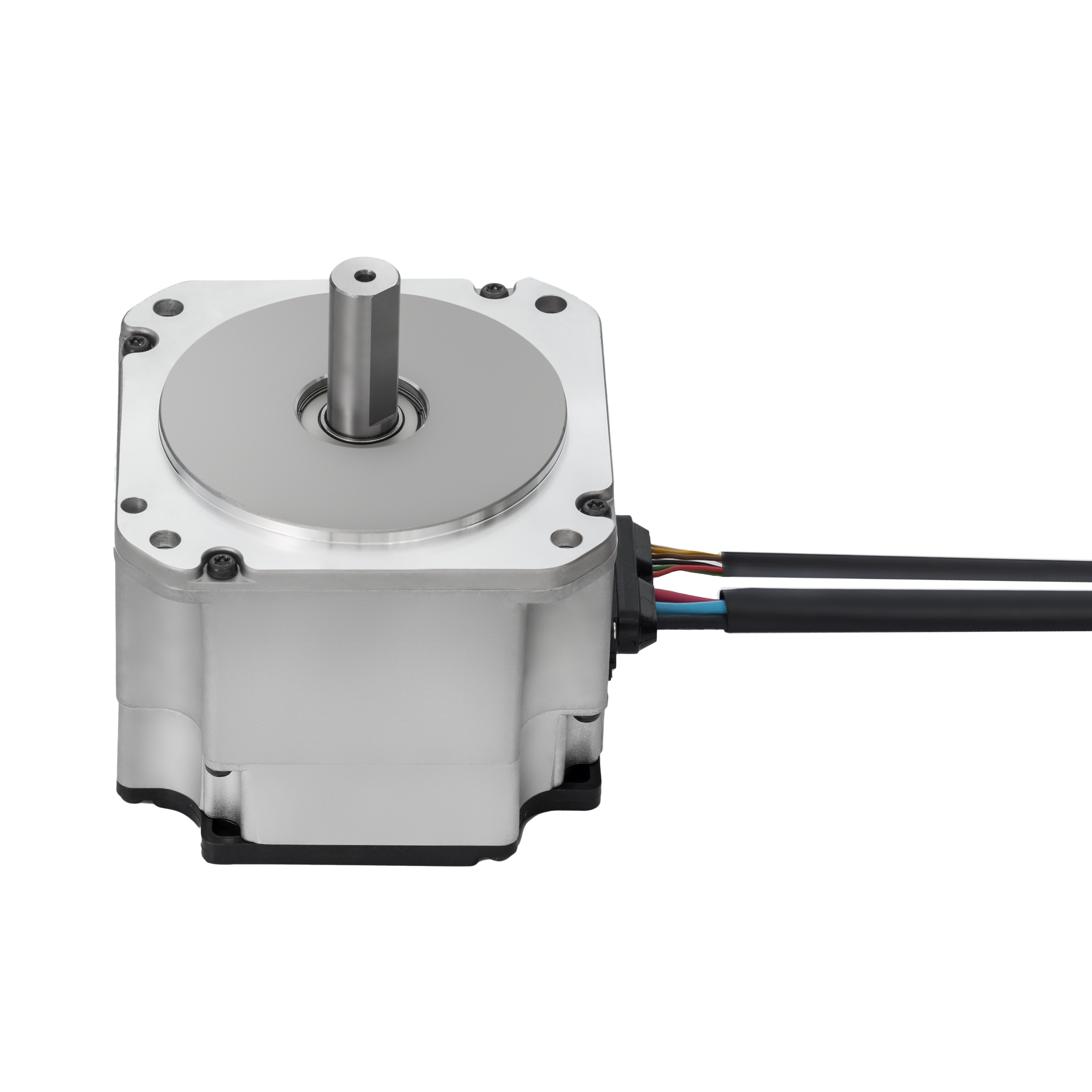

Mabuchi Motor IR94BZA-A123
Image shown is a representation only
Manufacturer
Manufacturer No
IR94BZA-A123
Packaging
Box
Description
BLDC 24 V RESOLVER 85MM
Detailed Description
DC Motor Standard 3400 RPM 355W 48VDC
DataSheet
RPM
3400 RPM
Type
DC Motor
Series
IR94BZA
Weight
2.4 lbs (1.1 kg)
Features
Resolver
Function
Standard
Packaging
Box
Part Status
Active
Manufacturer
Mabuchi Motor
Power - Rated
355W
Voltage - Rated
48VDC
Diameter - Shaft
0.472" (12.00mm)
Size / Dimension
Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Termination Style
Cable with Connector
Mounting Hole Spacing
3.740" (95.00mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
1.181" (30.00mm)
Torque - Rated (oz-in / mNm)
141.6 / 1000
Torque - Max Momentary (oz-in / mNm)
280 / 2000
| Attribute | Value |
|---|---|
| RPM | 3400 RPM |
| Type | DC Motor |
| Series | IR94BZA |
| Weight | 2.4 lbs (1.1 kg) |
| Features | Resolver |
| Function | Standard |
| Packaging | Box |
| Part Status | Active |
| Manufacturer | Mabuchi Motor |
| Power - Rated | 355W |
| Voltage - Rated | 48VDC |
| Diameter - Shaft | 0.472" (12.00mm) |
| Size / Dimension | Square - 3.346" x 3.346" (85.00mm x 85.00mm) |
| Termination Style | Cable with Connector |
| Mounting Hole Spacing | 3.740" (95.00mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 1.181" (30.00mm) |
| Torque - Rated (oz-in / mNm) | 141.6 / 1000 |
| Torque - Max Momentary (oz-in / mNm) | 280 / 2000 |
