Step1: Product

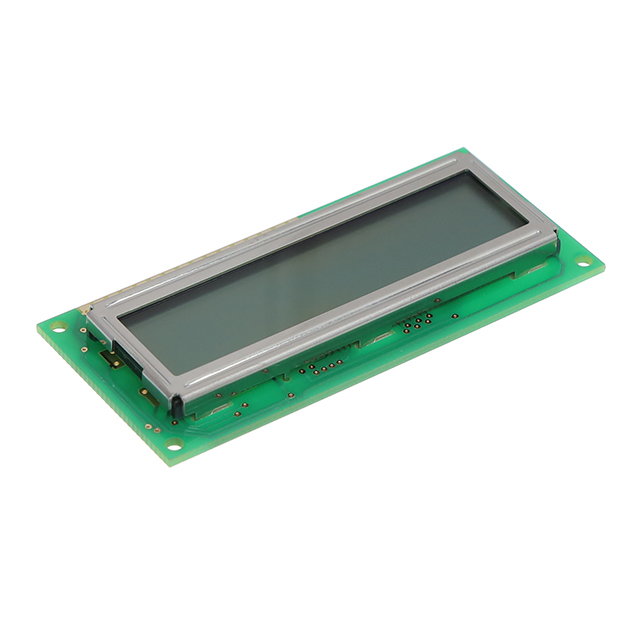

Lumex Opto/Components Inc. LCM-H01601DSR
Image shown is a representation only
Manufacturer
Manufacturer No
LCM-H01601DSR
Packaging
Tray
Description
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Detailed Description
Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel, 8-Bit 80.00mm x 36.00mm x 12.70mm
Datasheet
Dot Size
0.55mm W x 0.75mm H
Backlight
Without Backlight
Interface
Parallel, 8-Bit
Packaging
Tray
Display Mode
Reflective
Display Type
STN - Super-Twisted Nematic
Manufacturer
Lumex Opto/Components Inc.
Viewing Area
66.00mm L x 16.00mm W
Character Size
6.56mm H x 3.07mm W
Display Format
16 x 1
Character Format
5 x 8 Dots
Voltage - Supply
4.7V ~ 5.3V
Outline L x W x H
80.00mm x 36.00mm x 12.70mm
Base Product Number
LCM-H01601
Number of Characters
16.0
Operating Temperature
-20°C ~ 70°C
| Attribute | Value |
|---|---|
| Dot Size | 0.55mm W x 0.75mm H |
| Backlight | Without Backlight |
| Interface | Parallel, 8-Bit |
| Packaging | Tray |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Manufacturer | Lumex Opto/Components Inc. |
| Viewing Area | 66.00mm L x 16.00mm W |
| Character Size | 6.56mm H x 3.07mm W |
| Display Format | 16 x 1 |
| Character Format | 5 x 8 Dots |
| Voltage - Supply | 4.7V ~ 5.3V |
| Outline L x W x H | 80.00mm x 36.00mm x 12.70mm |
| Base Product Number | LCM-H01601 |
| Number of Characters | 16.0 |
| Operating Temperature | -20°C ~ 70°C |
