Step1: Product

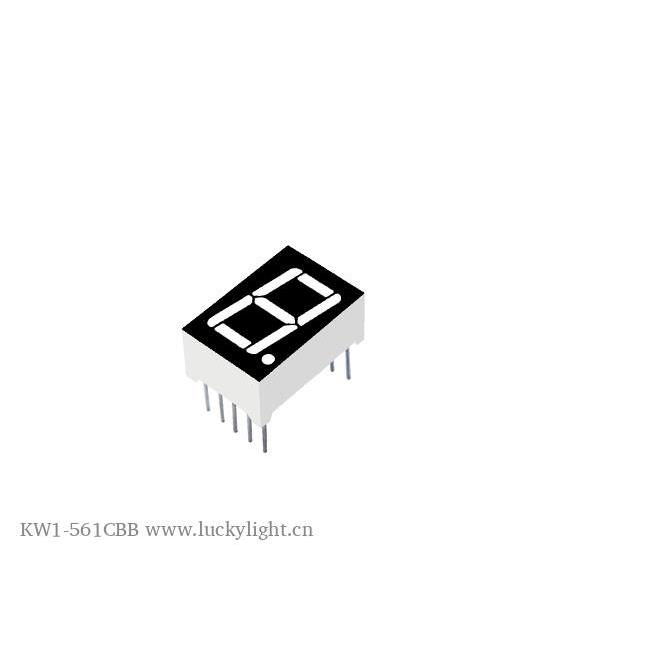

Luckylight KW1-561CBB
Image shown is a representation only
Manufacturer
Manufacturer No
KW1-561CBB
Package
10-DIP (0.600", 15.24mm)
Packaging
Retail Package
Description
0.56'' 1-DIGIT 7SEG BLU TH DISP
Detailed Description
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Cathode 2.9V 10mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
DataSheet
Color
Blue
Packaging
Retail Package
Common Pin
Common Cathode
Part Status
Active
Display Type
7-Segment
Manufacturer
Luckylight
Current - Test
10mA
Package / Case
10-DIP (0.600", 15.24mm)
Digit/Alpha Size
0.56" (14.20mm)
Size / Dimension
0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm)
Wavelength - Peak
468nm
Millicandela Rating
25mcd
Number of Characters
1
Power Dissipation (Max)
35mW
Voltage - Forward (Vf) (Typ)
2.9V
| Attribute | Value |
|---|---|
| Color | Blue |
| Packaging | Retail Package |
| Common Pin | Common Cathode |
| Part Status | Active |
| Display Type | 7-Segment |
| Manufacturer | Luckylight |
| Current - Test | 10mA |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Size / Dimension | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) |
| Wavelength - Peak | 468nm |
| Millicandela Rating | 25mcd |
| Number of Characters | 1 |
| Power Dissipation (Max) | 35mW |
| Voltage - Forward (Vf) (Typ) | 2.9V |
