Step1: Product

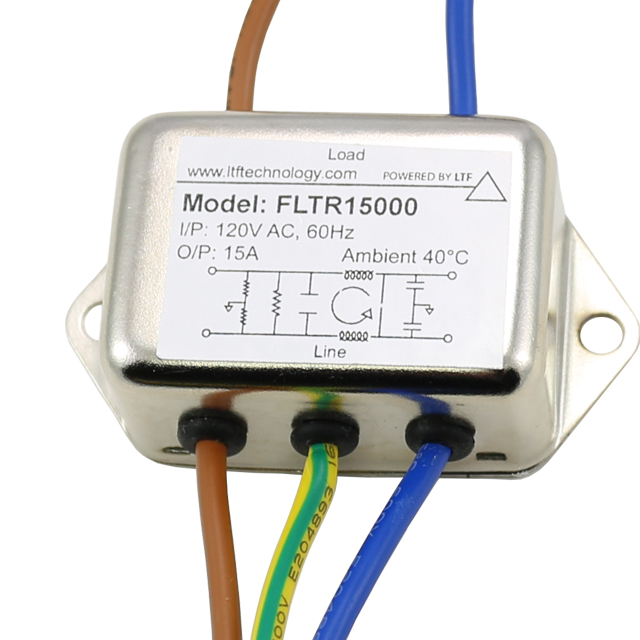

LTF technology LLC FLTR15000
Image shown is a representation only
Manufacturer
Manufacturer No
FLTR15000
Packaging
Retail Package
Description
EMI Line Filter
Detailed Description
LC EMI Filter 1st Order Band Stop 1 Channel L=88uH, C=10000pF 15 A
DataSheet
Type
Band Stop
Height
0.011" (0.29mm)
Values
L=88uH, C=10000pF
Current
15 A
Packaging
Retail Package
Technology
LC
Part Status
Active
Applications
Datalines, Fire Alarm, LED Lighting
Filter Order
1st
Manufacturer
LTF technology LLC
Mounting Type
Wire Lead
ESD Protection
Yes
Voltage - Rated
120VAC
Size / Dimension
2.520" L x 1.260" W (64.00mm x 32.00mm)
Attenuation Value
-25dB @ 3.5MHz ~ 200MHz
Number of Channels
1
Operating Temperature
-25°C ~ 85°C
Center / Cutoff Frequency
32MHz (Cutoff)
Resistance - Channel (Ohms)
0.15
| Attribute | Value |
|---|---|
| Type | Band Stop |
| Height | 0.011" (0.29mm) |
| Values | L=88uH, C=10000pF |
| Current | 15 A |
| Packaging | Retail Package |
| Technology | LC |
| Part Status | Active |
| Applications | Datalines, Fire Alarm, LED Lighting |
| Filter Order | 1st |
| Manufacturer | LTF technology LLC |
| Mounting Type | Wire Lead |
| ESD Protection | Yes |
| Voltage - Rated | 120VAC |
| Size / Dimension | 2.520" L x 1.260" W (64.00mm x 32.00mm) |
| Attenuation Value | -25dB @ 3.5MHz ~ 200MHz |
| Number of Channels | 1 |
| Operating Temperature | -25°C ~ 85°C |
| Center / Cutoff Frequency | 32MHz (Cutoff) |
| Resistance - Channel (Ohms) | 0.15 |
