Step1: Product
LSI/CSI LS7561F-S

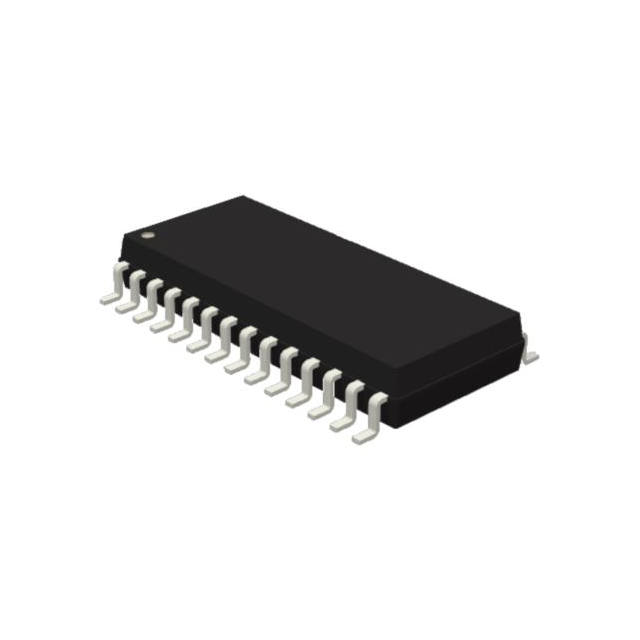

Image shown is a representation only
Manufacturer
Manufacturer No
LS7561F-S
Package
28-SOIC (0.295", 7.50mm Width)
Packaging
Tube
Description
IC MOTOR DRIVER BLDC 20V 28SOIC
Detailed Description
Motor Driver CMOS PWM 28-SOIC
DataSheet
Function
Controller - Commutation, Direction Management
Interface
PWM
Packaging
Tube
Technology
CMOS
Part Status
Active
Applications
General Purpose
Manufacturer
LSI/CSI
Mounting Type
Surface Mount
Package / Case
28-SOIC (0.295", 7.50mm Width)
Current - Output
75mA
Voltage - Supply
20V
Base Product Number
LS7561
Motor Type - AC, DC
Brushless DC (BLDC)
Output Configuration
Half Bridge (6)
Operating Temperature
-25°C ~ 85°C (TA)
Supplier Device Package
28-SOIC
| Attribute | Value |
|---|---|
| Function | Controller - Commutation, Direction Management |
| Interface | PWM |
| Packaging | Tube |
| Technology | CMOS |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | LSI/CSI |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Current - Output | 75mA |
| Voltage - Supply | 20V |
| Base Product Number | LS7561 |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Output Configuration | Half Bridge (6) |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Supplier Device Package | 28-SOIC |
