Step1: Product

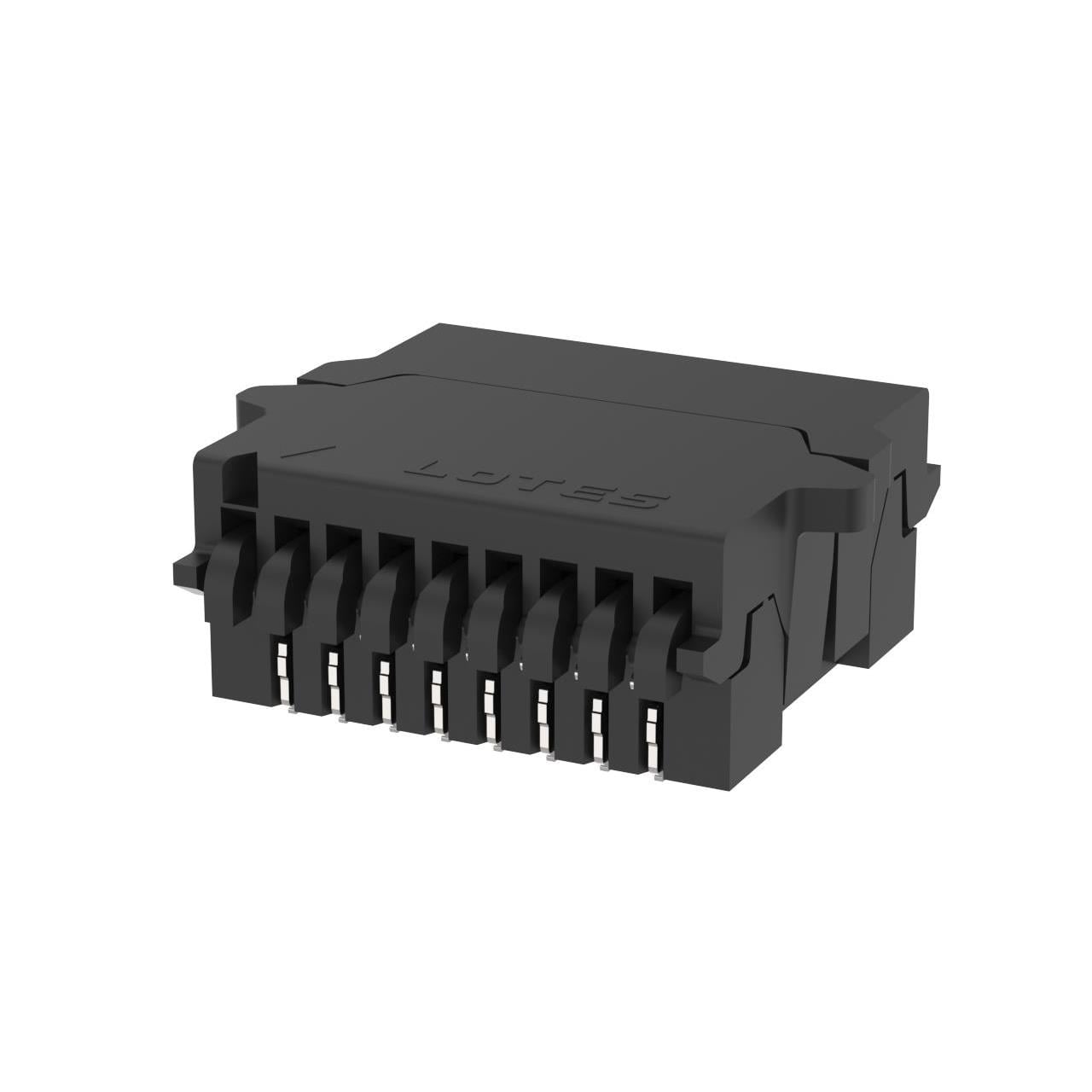

LOTES ACA-SPI-006-K01
Image shown is a representation only
Manufacturer
Manufacturer No
ACA-SPI-006-K01
Packaging
Tape & Reel (TR)
Description
SPI 16 PIN_IC 300mil
Detailed Description
16 (2 x 8) Pos SOIC Socket Gold Surface Mount
DataSheet
Type
SOIC
Features
Board Guide, Closed Frame
Packaging
Tape & Reel (TR)
Part Status
Active
Termination
Solder
Manufacturer
LOTES
Pitch - Post
0.050" (1.27mm)
Mounting Type
Surface Mount
Pitch - Mating
0.050" (1.27mm)
Housing Material
Liquid Crystal Polymer (LCP)
Contact Resistance
30mOhm
Contact Finish - Post
Gold
Contact Finish - Mating
Gold
Contact Material - Post
Phosphor Bronze
Contact Material - Mating
Phosphor Bronze
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
1.00µin (0.025µm)
Contact Finish Thickness - Mating
1.00µin (0.025µm)
Number of Positions or Pins (Grid)
16 (2 x 8)
| Attribute | Value |
|---|---|
| Type | SOIC |
| Features | Board Guide, Closed Frame |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | LOTES |
| Pitch - Post | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Pitch - Mating | 0.050" (1.27mm) |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 30mOhm |
| Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
| Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 1.00µin (0.025µm) |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Number of Positions or Pins (Grid) | 16 (2 x 8) |
