Step1: Product
Littelfuse Inc. TS250-130F-RA-2

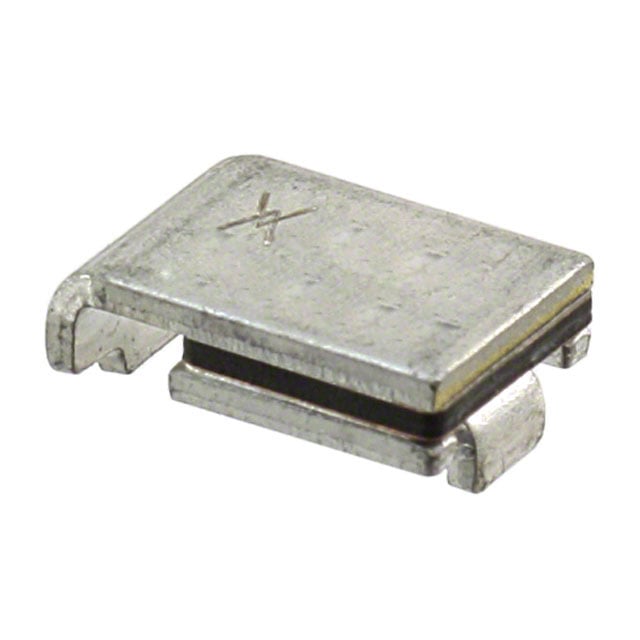

Image shown is a representation only
Manufacturer
Manufacturer No
TS250-130F-RA-2
Quantity
100
Availability
In Stock
Package
2-SMD
Packaging
Tape & Reel (TR)
Description
PTC RESET FUSE 60V 130MA 2SMD
Detailed Description
Polymeric PTC Resettable Fuse 60V (600V Int) 130 mA Ih Surface Mount 2-SMD
DataSheet
Type
Polymeric
Series
PolySwitch®, TS250
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
Littelfuse Inc.
Time to Trip
2.5 s
Current - Max
1 A
Mounting Type
Surface Mount
Voltage - Max
60V (600V Int)
Package / Case
2-SMD
Approval Agency
CSA, TUV, UL
Thickness (Max)
0.134" (3.40mm)
Size / Dimension
0.352" L x 0.291" W (8.95mm x 7.40mm)
Current - Trip (It)
260 mA
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
130 mA
Resistance - Initial (Ri) (Min)
6.5 Ohms
Resistance - Post Trip (R1) (Max)
15 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | PolySwitch®, TS250 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Time to Trip | 2.5 s |
| Current - Max | 1 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 60V (600V Int) |
| Package / Case | 2-SMD |
| Approval Agency | CSA, TUV, UL |
| Thickness (Max) | 0.134" (3.40mm) |
| Size / Dimension | 0.352" L x 0.291" W (8.95mm x 7.40mm) |
| Current - Trip (It) | 260 mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 130 mA |
| Resistance - Initial (Ri) (Min) | 6.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
