Step1: Product

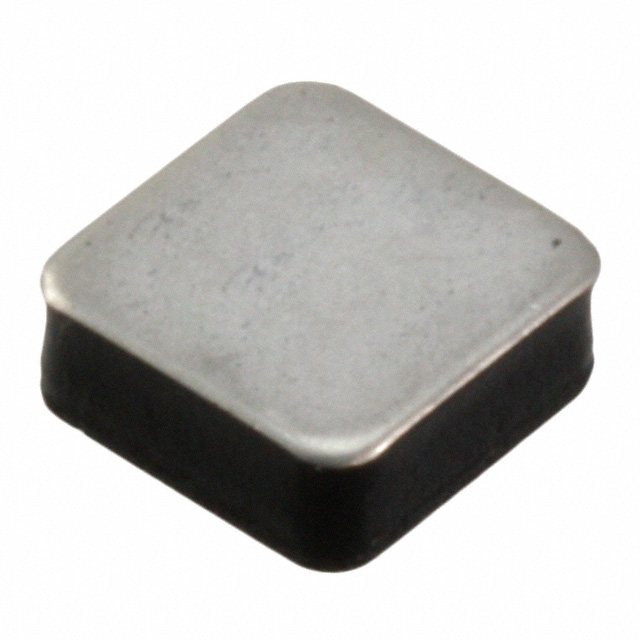

Littelfuse Inc. TCF250-120
Image shown is a representation only
Manufacturer
Manufacturer No
TCF250-120
Package
Nonstandard SMD
Packaging
Bulk
Description
PTC RESET FUSE 60V 120MA SMD
Detailed Description
Polymeric PTC Resettable Fuse 60V (250V Int) 120 mA Ih Surface Mount Nonstandard SMD
DataSheet
Type
Polymeric
Series
PolySwitch®, TCF250
Packaging
Bulk
Part Status
Active
Manufacturer
Littelfuse Inc.
Time to Trip
900 ms
Current - Max
3 A
Mounting Type
Surface Mount
Voltage - Max
60V (250V Int)
Package / Case
Nonstandard SMD
Thickness (Max)
0.091" (2.30mm)
Size / Dimension
0.217" L x 0.217" W (5.50mm x 5.50mm)
Current - Trip (It)
240 mA
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
120 mA
Resistance - Initial (Ri) (Min)
5 Ohms
Resistance - Post Trip (R1) (Max)
14 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | PolySwitch®, TCF250 |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Time to Trip | 900 ms |
| Current - Max | 3 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 60V (250V Int) |
| Package / Case | Nonstandard SMD |
| Thickness (Max) | 0.091" (2.30mm) |
| Size / Dimension | 0.217" L x 0.217" W (5.50mm x 5.50mm) |
| Current - Trip (It) | 240 mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 120 mA |
| Resistance - Initial (Ri) (Min) | 5 Ohms |
| Resistance - Post Trip (R1) (Max) | 14 Ohms |
