Step1: Product

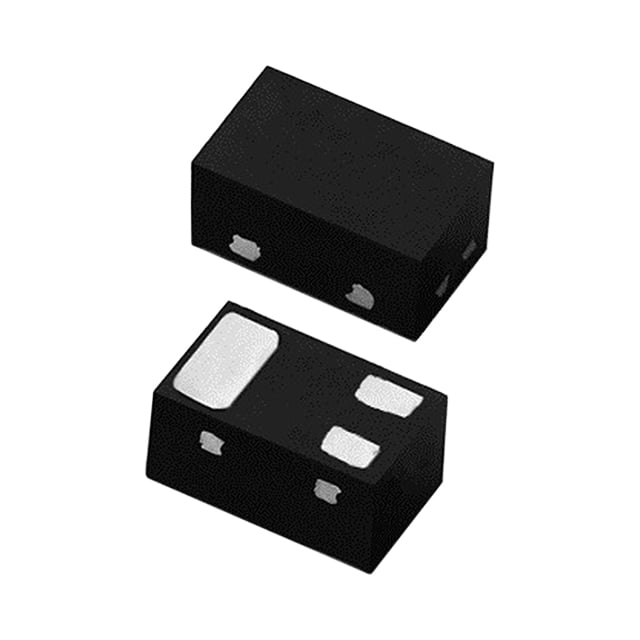

Littelfuse Inc. SP3222-02ETG
Image shown is a representation only
Manufacturer
Manufacturer No
SP3222-02ETG
Quantity
1050
Availability
In Stock
Package
3-UFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 3.3VWM 10VC SOD883
Detailed Description
10V (Typ) Clamp 3A Ipp Tvs Diode Surface Mount SOD-883
DataSheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SP3222, SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
USB
Mounting Type
Surface Mount
Package / Case
3-UFDFN
Power - Peak Pulse
30W
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
Yes
Supplier Device Package
SOD-883
Unidirectional Channels
2
Voltage - Breakdown (Min)
6.1V
Voltage - Clamping (Max) @ Ipp
10V (Typ)
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Current - Peak Pulse (10/1000µs)
3A
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SP3222, SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | USB |
| Mounting Type | Surface Mount |
| Package / Case | 3-UFDFN |
| Power - Peak Pulse | 30W |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | Yes |
| Supplier Device Package | SOD-883 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6.1V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Current - Peak Pulse (10/1000µs) | 3A |
