Step1: Product
Littelfuse Inc. SP3012-04UTG

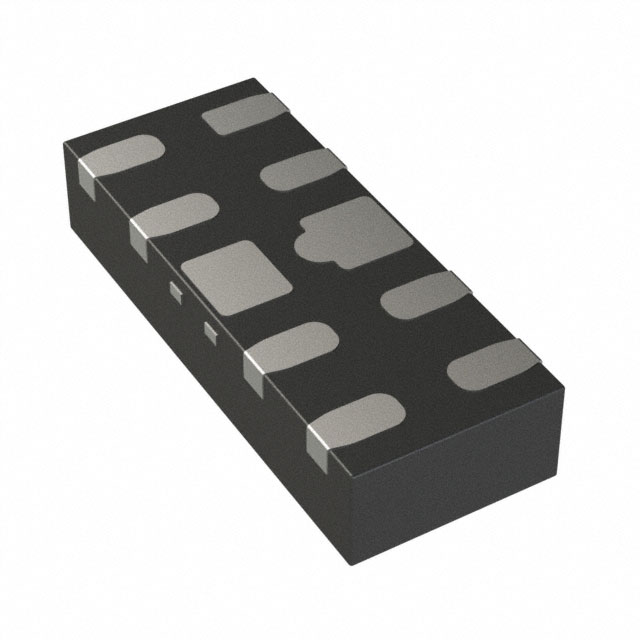

Image shown is a representation only
Manufacturer
Manufacturer No
SP3012-04UTG
Date Code
19+
Quantity
290
Availability
In Stock
Package
10-UFDFN
Packaging
Tape & Reel (TR)
Description
TVS DIODE 5VWM 7VC 10UDFN
Detailed Description
7V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 10-µDFN (2.5x1.0)
Datasheet
Mfr
Littelfuse Inc.
Type
Steering (Rail to Rail)
Grade
Automotive
Series
SP3012, SPA®
Packaging
Tape & Reel (TR)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
10-UFDFN
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
Yes
Capacitance @ Frequency
0.5pF @ 1MHz
Supplier Device Package
10-µDFN (2.5x1.0)
Unidirectional Channels
4
Voltage - Clamping (Max) @ Ipp
7V (Typ)
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
4A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Steering (Rail to Rail) |
| Grade | Automotive |
| Series | SP3012, SPA® |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 10-UFDFN |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Supplier Device Package | 10-µDFN (2.5x1.0) |
| Unidirectional Channels | 4 |
| Voltage - Clamping (Max) @ Ipp | 7V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
