Step1: Product
Littelfuse Inc. SMD030F-2018-2

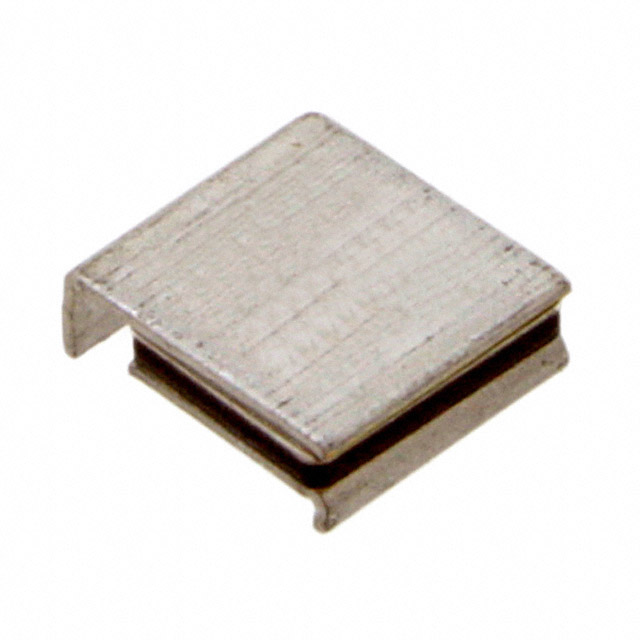

Image shown is a representation only
Manufacturer
Manufacturer No
SMD030F-2018-2
Quantity
470
Availability
In Stock
Package
2-SMD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 60V 300MA 2SMD
Detailed Description
Polymeric PTC Resettable Fuse 60V 300 mA Ih Surface Mount 2-SMD
DataSheet
Type
Polymeric
Series
PolySwitch®, SMD
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Littelfuse Inc.
Time to Trip
1.5 s
Current - Max
20 A
Mounting Type
Surface Mount
Voltage - Max
60V
Package / Case
2-SMD
Approval Agency
CSA, TUV, UL
Thickness (Max)
0.070" (1.78mm)
Size / Dimension
0.200" L x 0.180" W (5.08mm x 4.58mm)
Current - Trip (It)
800 mA
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
300 mA
Resistance - Initial (Ri) (Min)
500 mOhms
Resistance - Post Trip (R1) (Max)
2.3 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Series | PolySwitch®, SMD |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Time to Trip | 1.5 s |
| Current - Max | 20 A |
| Mounting Type | Surface Mount |
| Voltage - Max | 60V |
| Package / Case | 2-SMD |
| Approval Agency | CSA, TUV, UL |
| Thickness (Max) | 0.070" (1.78mm) |
| Size / Dimension | 0.200" L x 0.180" W (5.08mm x 4.58mm) |
| Current - Trip (It) | 800 mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 300 mA |
| Resistance - Initial (Ri) (Min) | 500 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.3 Ohms |
