Step1: Product
Littelfuse Inc. SM8S15A

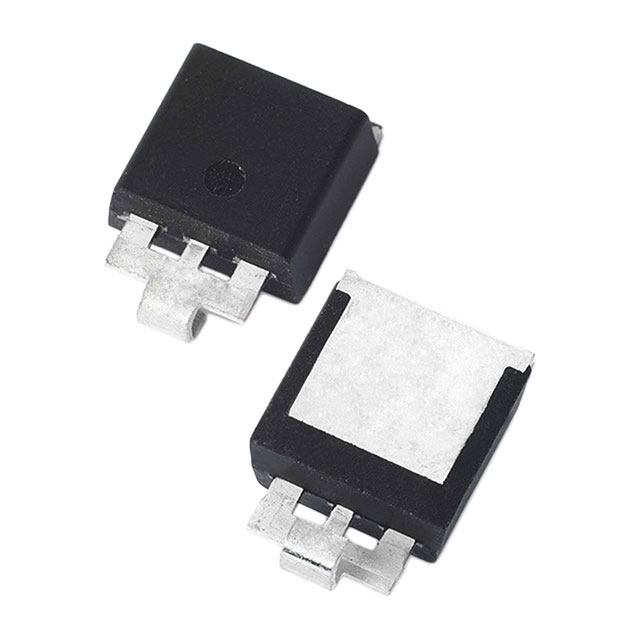

Image shown is a representation only
Manufacturer
Manufacturer No
SM8S15A
Quantity
480
Availability
In Stock
Package
Nonstandard SMD
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 15VWM 24.4VC SMTO-263
Detailed Description
24.4V Clamp 286A Ipp Tvs Diode Surface Mount SMTO-263
DataSheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SM8S
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
Nonstandard SMD
Power - Peak Pulse
7000W (7kW)
Base Product Number
SM8S15
Operating Temperature
-55°C ~ 175°C (TJ)
Power Line Protection
Yes
Supplier Device Package
SMTO-263
Unidirectional Channels
1
Voltage - Breakdown (Min)
16.7V
Voltage - Clamping (Max) @ Ipp
24.4V
Voltage - Reverse Standoff (Typ)
15V
Current - Peak Pulse (10/1000µs)
286A
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SM8S |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Power - Peak Pulse | 7000W (7kW) |
| Base Product Number | SM8S15 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Power Line Protection | Yes |
| Supplier Device Package | SMTO-263 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Voltage - Reverse Standoff (Typ) | 15V |
| Current - Peak Pulse (10/1000µs) | 286A |
