Step1: Product
Littelfuse Inc. SC1205-01UTG

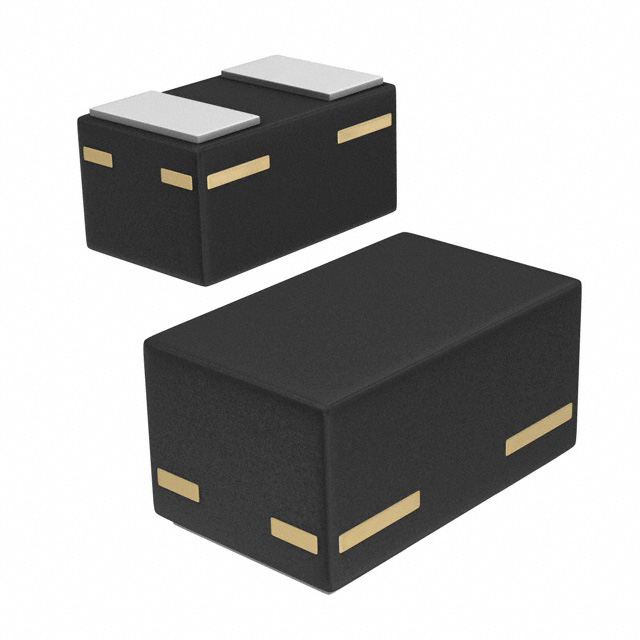

Image shown is a representation only
Manufacturer
Manufacturer No
SC1205-01UTG
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 4.5VWM 10VC 2UDFN
Detailed Description
10V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount 2-µDFN (0.60x0.30)
DataSheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Base Product Number
SC1205
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
7pF @ 1MHz
Supplier Device Package
2-µDFN (0.60x0.30)
Voltage - Breakdown (Min)
5.3V
Voltage - Clamping (Max) @ Ipp
10V (Typ)
Voltage - Reverse Standoff (Typ)
4.5V (Max)
Current - Peak Pulse (10/1000µs)
7A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Base Product Number | SC1205 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 7pF @ 1MHz |
| Supplier Device Package | 2-µDFN (0.60x0.30) |
| Voltage - Breakdown (Min) | 5.3V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Voltage - Reverse Standoff (Typ) | 4.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
