Step1: Product
Littelfuse Inc. SC1006-01LTG

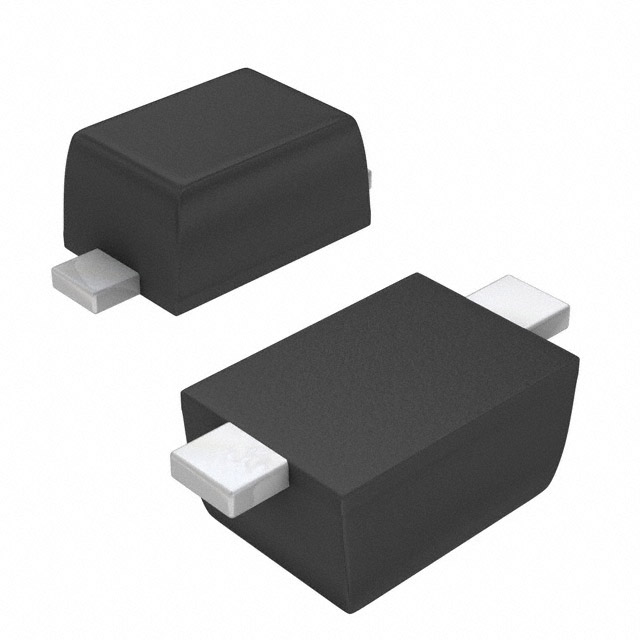

Image shown is a representation only
Manufacturer
Manufacturer No
SC1006-01LTG
Quantity
20
Availability
In Stock
Package
SC-79, SOD-523
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
TVS DIODE 6VWM 10.5VC SOD523
Detailed Description
10.5V (Typ) Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
DataSheet
Mfr
Littelfuse Inc.
Type
Zener
Series
SPA®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
SC-79, SOD-523
Operating Temperature
-40°C ~ 125°C (TA)
Power Line Protection
No
Capacitance @ Frequency
30pF @ 1MHz
Supplier Device Package
SOD-523
Unidirectional Channels
1
Voltage - Breakdown (Min)
7V (Typ)
Voltage - Clamping (Max) @ Ipp
10.5V (Typ)
Voltage - Reverse Standoff (Typ)
6V (Max)
Current - Peak Pulse (10/1000µs)
5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Type | Zener |
| Series | SPA® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Supplier Device Package | SOD-523 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 7V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 10.5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 6V (Max) |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
