Step1: Product
Littelfuse Inc. S8055WTP

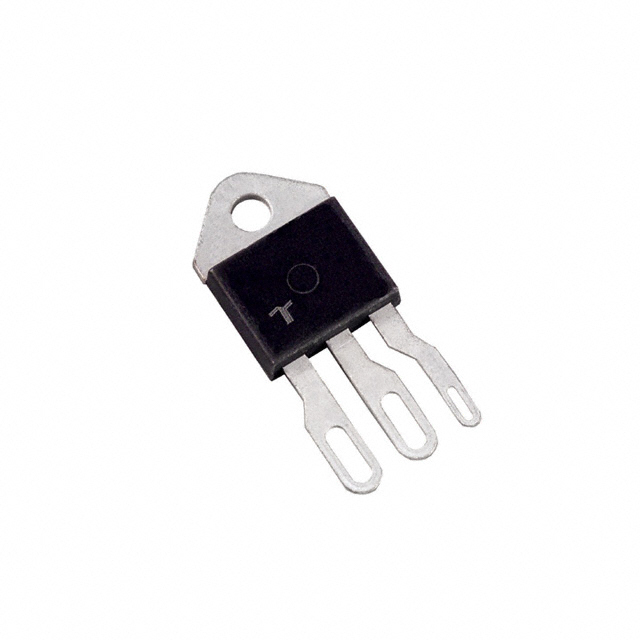

Image shown is a representation only
Manufacturer
Manufacturer No
S8055WTP
Package
TO-218X-3
Packaging
Tube
Description
SCR 800V 55A TO-218X
Detailed Description
SCR 800 V 55 A Standard Recovery Through Hole TO-218X
DataSheet
SCR Type
Standard Recovery
Packaging
Tube
Part Status
Active
Manufacturer
Littelfuse Inc.
Mounting Type
Through Hole
Package / Case
TO-218X-3
Voltage - Off State
800 V
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
TO-218X
Current - Hold (Ih) (Max)
60 mA
Current - Off State (Max)
20 µA
Voltage - On State (Vtm) (Max)
1.8 V
Current - Gate Trigger (Igt) (Max)
40 mA
Current - On State (It (AV)) (Max)
35 A
Voltage - Gate Trigger (Vgt) (Max)
1.5 V
Current - On State (It (RMS)) (Max)
55 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
550A, 650A
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Tube |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Mounting Type | Through Hole |
| Package / Case | TO-218X-3 |
| Voltage - Off State | 800 V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | TO-218X |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 20 µA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Current - On State (It (AV)) (Max) | 35 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 55 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
