Step1: Product

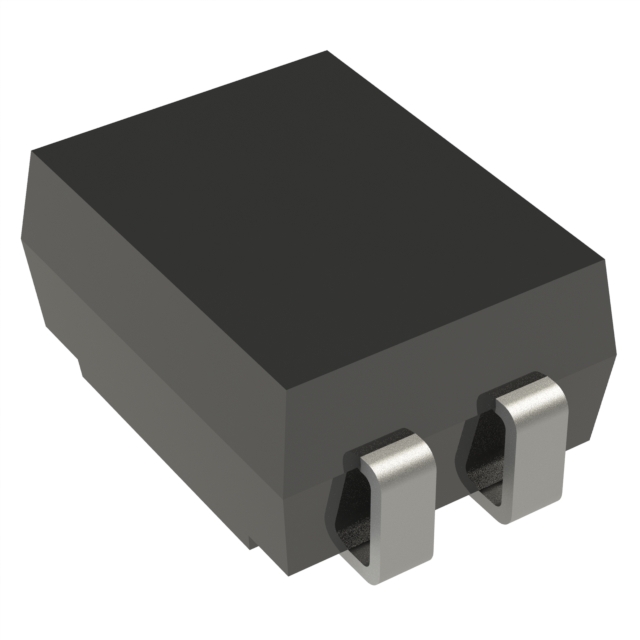

Littelfuse Inc. P1501CB2LRP
Image shown is a representation only
Manufacturer
Manufacturer No
P1501CB2LRP
Package
DO-214AA, SMB
Packaging
Tape & Reel (TR)
Description
THYRISTOR 140V 250A DO-214AA
Detailed Description
140V Off-State 250 A Ipp TVS Thyristor DO-214AA, SMB
DataSheet
Series
SIDACtor®
Packaging
Tape & Reel (TR)
Capacitance
25pF, 45pF
Part Status
Active
Manufacturer
Littelfuse Inc.
Mounting Type
Surface Mount
Package / Case
DO-214AA, SMB
Number of Elements
2
Voltage - On State
4 V
Current - Hold (Ih)
120 mA
Voltage - Breakover
185V
Voltage - Off State
140V
Supplier Device Package
DO214AA Modified
Current - Peak Pulse (8/20µs)
250 A
Current - Peak Pulse (10/1000µs)
80 A
| Attribute | Value |
|---|---|
| Series | SIDACtor® |
| Packaging | Tape & Reel (TR) |
| Capacitance | 25pF, 45pF |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Number of Elements | 2 |
| Voltage - On State | 4 V |
| Current - Hold (Ih) | 120 mA |
| Voltage - Breakover | 185V |
| Voltage - Off State | 140V |
| Supplier Device Package | DO214AA Modified |
| Current - Peak Pulse (8/20µs) | 250 A |
| Current - Peak Pulse (10/1000µs) | 80 A |
