Step1: Product

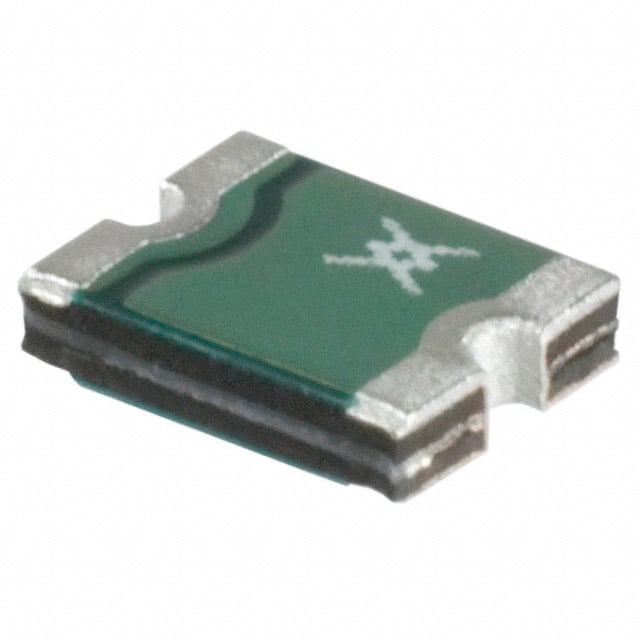

Littelfuse Inc. MICROASMD010F-2
Image shown is a representation only
Manufacturer
Manufacturer No
MICROASMD010F-2
Quantity
20
Availability
In Stock
Package
1210 (3225 Metric), Concave
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PTC RESET FUSE 30V 100MA 1210
Detailed Description
Polymeric PTC Resettable Fuse 30V 100 mA Ih Surface Mount 1210 (3225 Metric), Concave
DataSheet
Type
Polymeric
Grade
Automotive
Series
PolySwitch®, microASMD
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Manufacturer
Littelfuse Inc.
Time to Trip
1 s
Current - Max
10 A
Mounting Type
Surface Mount
Qualification
AEC-Q200
Voltage - Max
30V
Package / Case
1210 (3225 Metric), Concave
Thickness (Max)
0.026" (0.67mm)
Size / Dimension
0.127" L x 0.102" W (3.22mm x 2.58mm)
Current - Trip (It)
250 mA
Operating Temperature
-40°C ~ 85°C
Current - Hold (Ih) (Max)
100 mA
Resistance - Initial (Ri) (Min)
2.1 Ohms
Resistance - Post Trip (R1) (Max)
15 Ohms
| Attribute | Value |
|---|---|
| Type | Polymeric |
| Grade | Automotive |
| Series | PolySwitch®, microASMD |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Time to Trip | 1 s |
| Current - Max | 10 A |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Voltage - Max | 30V |
| Package / Case | 1210 (3225 Metric), Concave |
| Thickness (Max) | 0.026" (0.67mm) |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Current - Trip (It) | 250 mA |
| Operating Temperature | -40°C ~ 85°C |
| Current - Hold (Ih) (Max) | 100 mA |
| Resistance - Initial (Ri) (Min) | 2.1 Ohms |
| Resistance - Post Trip (R1) (Max) | 15 Ohms |
