Step1: Product
Littelfuse Inc. MD18180S-BM2MM

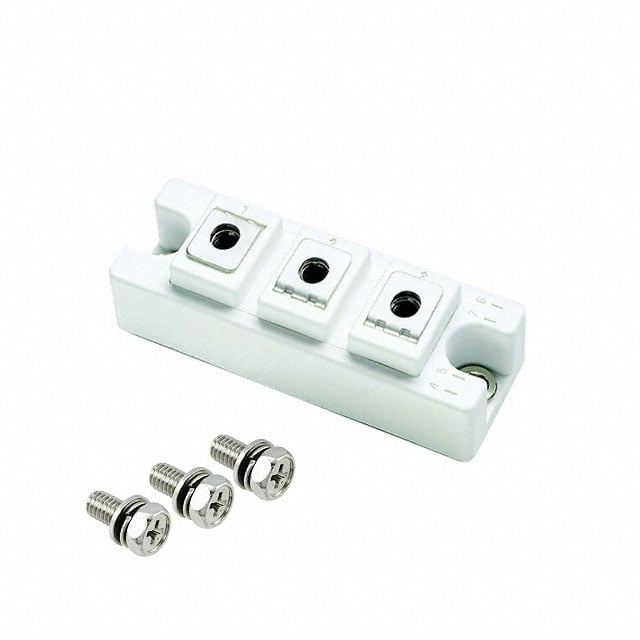

Image shown is a representation only
Manufacturer
Manufacturer No
MD18180S-BM2MM
Package
S-3 Module
Packaging
Bulk
Description
DIODE MODULE GP 1800V 180A S3
Detailed Description
Diode Array 1 Pair Series Connection 1800 V 180A Chassis Mount S-3 Module
DataSheet
Speed
Standard Recovery >500ns, > 200mA (Io)
Packaging
Bulk
Technology
Standard
Part Status
Obsolete
Manufacturer
Littelfuse Inc.
Mounting Type
Chassis Mount
Package / Case
S-3 Module
Diode Configuration
1 Pair Series Connection
Supplier Device Package
S3
Current - Reverse Leakage @ Vr
500 µA @ 1800 V
Voltage - DC Reverse (Vr) (Max)
1800 V
Voltage - Forward (Vf) (Max) @ If
1.5 V @ 600 A
Current - Average Rectified (Io) (per Diode)
180A
| Attribute | Value |
|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Standard |
| Part Status | Obsolete |
| Manufacturer | Littelfuse Inc. |
| Mounting Type | Chassis Mount |
| Package / Case | S-3 Module |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | S3 |
| Current - Reverse Leakage @ Vr | 500 µA @ 1800 V |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 600 A |
| Current - Average Rectified (Io) (per Diode) | 180A |
