Step1: Product

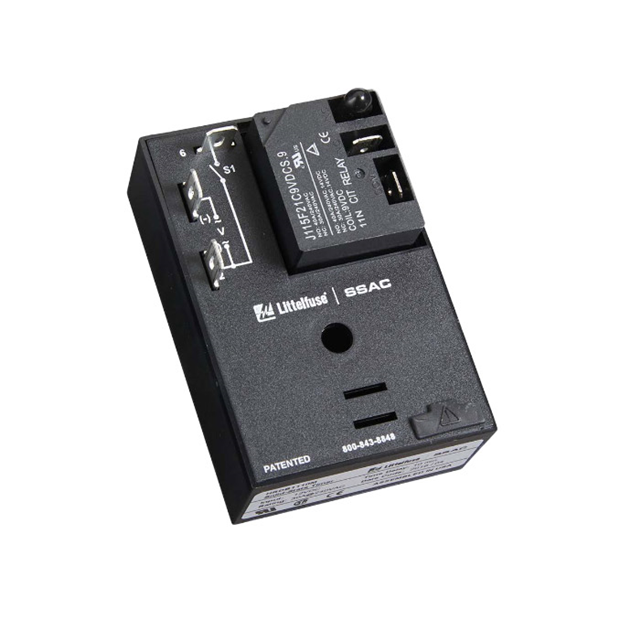

Littelfuse Inc. HRDB1110M
Image shown is a representation only
Manufacturer
Manufacturer No
HRDB1110M
Packaging
Bulk
Description
RELAY TIME DELAY 10 MIN 30A 125V
Detailed Description
Off-Delay Time Delay Relay SPDT (1 Form C) Fixed, 10 Min Delay 30A @ 125/240VAC Chassis Mount
DataSheet
Series
HRDB
Circuit
SPDT (1 Form C)
Function
Off-Delay
Packaging
Bulk
Delay Time
Fixed, 10 Min
Relay Type
Mechanical Relay
Part Status
Active
Manufacturer
Littelfuse Inc.
Mounting Type
Chassis Mount
Voltage - Supply
12VDC
Termination Style
Quick Connect - 0.250" (6.3mm)
Base Product Number
HRDB1
Timing Initiate Method
Input Voltage, Trigger Signal
Contact Rating @ Voltage
30A @ 125/240VAC
Timing Adjustment Method
Fixed
| Attribute | Value |
|---|---|
| Series | HRDB |
| Circuit | SPDT (1 Form C) |
| Function | Off-Delay |
| Packaging | Bulk |
| Delay Time | Fixed, 10 Min |
| Relay Type | Mechanical Relay |
| Part Status | Active |
| Manufacturer | Littelfuse Inc. |
| Mounting Type | Chassis Mount |
| Voltage - Supply | 12VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Base Product Number | HRDB1 |
| Timing Initiate Method | Input Voltage, Trigger Signal |
| Contact Rating @ Voltage | 30A @ 125/240VAC |
| Timing Adjustment Method | Fixed |
