Step1: Product
Littelfuse Inc. D6025LCTP

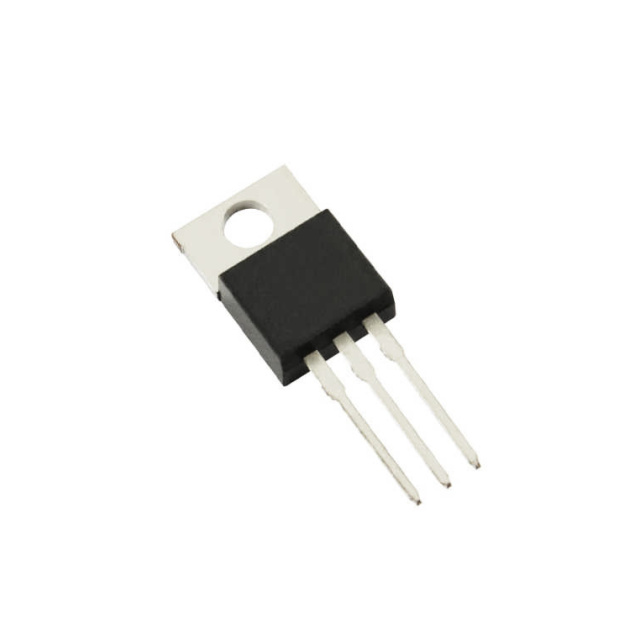

Image shown is a representation only
Manufacturer
Manufacturer No
D6025LCTP
Package
TO-220-3 Isolated Tab
Packaging
Tube
Description
DIODE STD 600V 15.9A ITO220AB
Detailed Description
Diode 600 V 15.9A Through Hole ITO-220AB
DataSheet
Mfr
Littelfuse Inc.
Speed
Standard Recovery >500ns, > 200mA (Io)
Series
Dxx25L
Packaging
Tube
Technology
Standard
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-220-3 Isolated Tab
Base Product Number
D6025
Supplier Device Package
ITO-220AB
Reverse Recovery Time (trr)
4 µs
Current - Reverse Leakage @ Vr
10 µA @ 600 V
Voltage - DC Reverse (Vr) (Max)
600 V
Current - Average Rectified (Io)
15.9A
Operating Temperature - Junction
-40°C ~ 125°C
Voltage - Forward (Vf) (Max) @ If
1.6 V @ 15 A
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Series | Dxx25L |
| Packaging | Tube |
| Technology | Standard |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Isolated Tab |
| Base Product Number | D6025 |
| Supplier Device Package | ITO-220AB |
| Reverse Recovery Time (trr) | 4 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15.9A |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 15 A |
