Step1: Product

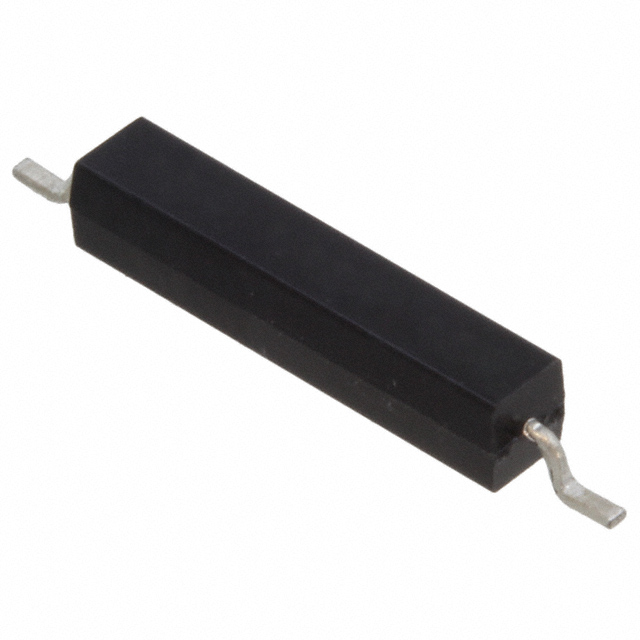

Littelfuse Inc. 59170-1-T-00-D
Image shown is a representation only
Manufacturer
Manufacturer No
59170-1-T-00-D
Quantity
34
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SWITCH REED SPST-NO 350MA 140V
Detailed Description
Molded Body Reed Switch SPST-NO 15 ~ 20AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount
Datasheet
Type
Molded Body Reed
Series
59170
Circuit
SPST-NO
Packaging
Tape & Reel (TR); Cut Tape (CT)
Capacitance
0.3 pF
Size - Body
0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm)
Manufacturer
Littelfuse Inc.
Operate Time
1 ms
Release Time
0.5 ms
Mounting Type
Surface Mount
Operate Range
15 ~ 20AT
Power - Rated
10W
Current - Carry
800mA (DC)
Length - Overall
0.640" (16.26mm)
Termination Style
Gull Wing
Height Above Board
0.095" (2.41mm)
Current - Switching
350mA (AC), 500mA (DC)
Operating Temperature
-40°C ~ 125°C
Voltage - Switching AC
140 V
Voltage - Switching DC
200 V
| Attribute | Value |
|---|---|
| Type | Molded Body Reed |
| Series | 59170 |
| Circuit | SPST-NO |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Capacitance | 0.3 pF |
| Size - Body | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) |
| Manufacturer | Littelfuse Inc. |
| Operate Time | 1 ms |
| Release Time | 0.5 ms |
| Mounting Type | Surface Mount |
| Operate Range | 15 ~ 20AT |
| Power - Rated | 10W |
| Current - Carry | 800mA (DC) |
| Length - Overall | 0.640" (16.26mm) |
| Termination Style | Gull Wing |
| Height Above Board | 0.095" (2.41mm) |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Switching AC | 140 V |
| Voltage - Switching DC | 200 V |
