Step1: Product

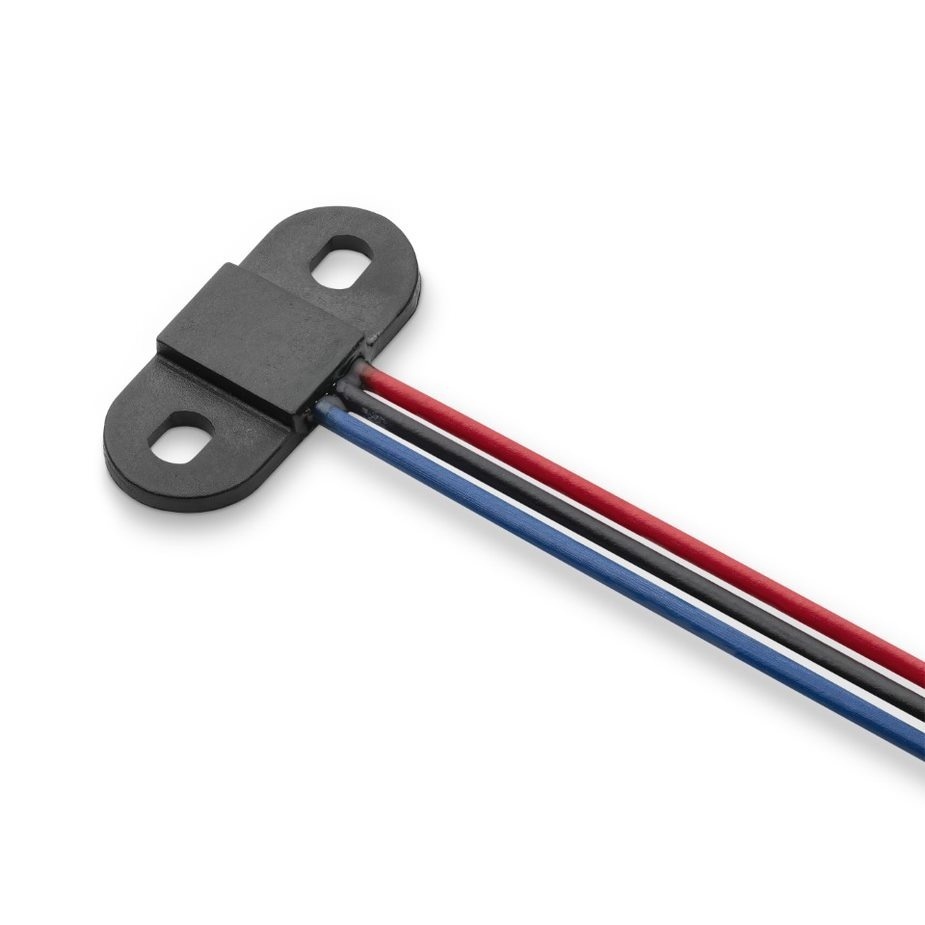

Littelfuse Inc. 54100-17X-02-A
Image shown is a representation only
Manufacturer
Manufacturer No
54100-17X-02-A
Package
Module
Packaging
Bulk
Description
SENSORS
Detailed Description
Digital Switch Latch, Omnipolar Switch Push-Pull Hall Effect
DataSheet
Mfr
Littelfuse Inc.
Series
54100
Features
Temperature Compensated
Function
Latch, Omnipolar Switch
Packaging
Bulk
Technology
Hall Effect
Output Type
Push-Pull
Part Status
Active
Polarization
North Pole, South Pole
Mounting Type
Flange Mount
Sensing Range
±1.7mT Trip, ±1mT Release
Package / Case
Module
Test Condition
-40°C ~ 100°C
Voltage - Supply
1.8V ~ 5.5V
Operating Temperature
-40°C ~ 100°C (TA)
Current - Output (Max)
3mA
Current - Supply (Max)
1.5µA
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Series | 54100 |
| Features | Temperature Compensated |
| Function | Latch, Omnipolar Switch |
| Packaging | Bulk |
| Technology | Hall Effect |
| Output Type | Push-Pull |
| Part Status | Active |
| Polarization | North Pole, South Pole |
| Mounting Type | Flange Mount |
| Sensing Range | ±1.7mT Trip, ±1mT Release |
| Package / Case | Module |
| Test Condition | -40°C ~ 100°C |
| Voltage - Supply | 1.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Current - Output (Max) | 3mA |
| Current - Supply (Max) | 1.5µA |
