Step1: Product

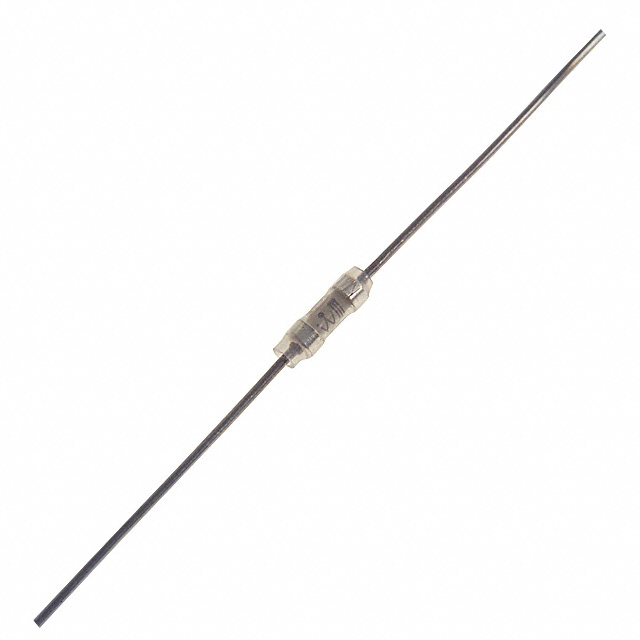

Littelfuse Inc. 27505000001
Image shown is a representation only
Manufacturer
Manufacturer No
27505000001
Package
Cartridge, Non-Standard (Axial)
Packaging
Tape & Reel (TR)
Description
FUSE BRD MT 500MA 125VAC/VDC AXL
Detailed Description
500 mA 125 V 125 V Fuse Board Mount (Cartridge Style Excluded) Through Hole Cartridge, Non-Standard (Axial)
DataSheet
Mfr
Littelfuse Inc.
Series
275
Fuse Type
Board Mount (Cartridge Style Excluded)
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Melting I²t
0.04
Mounting Type
Through Hole
Response Time
Fast Blow
Package / Case
Cartridge, Non-Standard (Axial)
Approval Agency
CE, cUL, UL
Size / Dimension
0.094" Dia x 0.283" L (2.40mm x 7.20mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
500 mA
Breaking Capacity @ Rated Voltage
50A AC, 300A DC
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Series | 275 |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Melting I²t | 0.04 |
| Mounting Type | Through Hole |
| Response Time | Fast Blow |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Approval Agency | CE, cUL, UL |
| Size / Dimension | 0.094" Dia x 0.283" L (2.40mm x 7.20mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 500 mA |
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC |
