Step1: Product

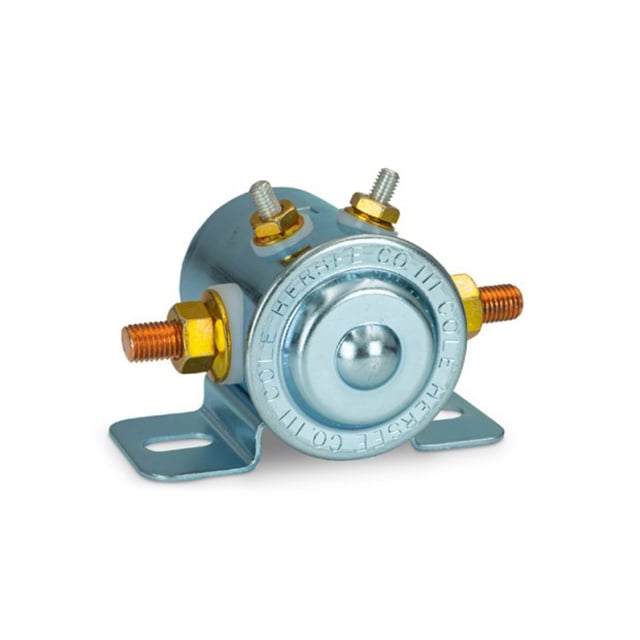

Littelfuse Inc. 24080-BX
Image shown is a representation only
Manufacturer
Manufacturer No
24080-BX
Packaging
Bulk
Description
CVP RELAY
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 36VDC Coil Chassis Mount
DataSheet
Mfr
Littelfuse Inc.
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Part Status
Active
Coil Current
276.9 mA
Coil Voltage
36VDC
Contact Form
SPST-NO (1 Form A)
Mounting Type
Chassis Mount
Coil Resistance
130 Ohms
Contact Material
Silver (Ag)
Switching Voltage
18VDC - Max
Termination Style
Stud
Base Product Number
24080
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
85 A
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Part Status | Active |
| Coil Current | 276.9 mA |
| Coil Voltage | 36VDC |
| Contact Form | SPST-NO (1 Form A) |
| Mounting Type | Chassis Mount |
| Coil Resistance | 130 Ohms |
| Contact Material | Silver (Ag) |
| Switching Voltage | 18VDC - Max |
| Termination Style | Stud |
| Base Product Number | 24080 |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 85 A |
