Step1: Product

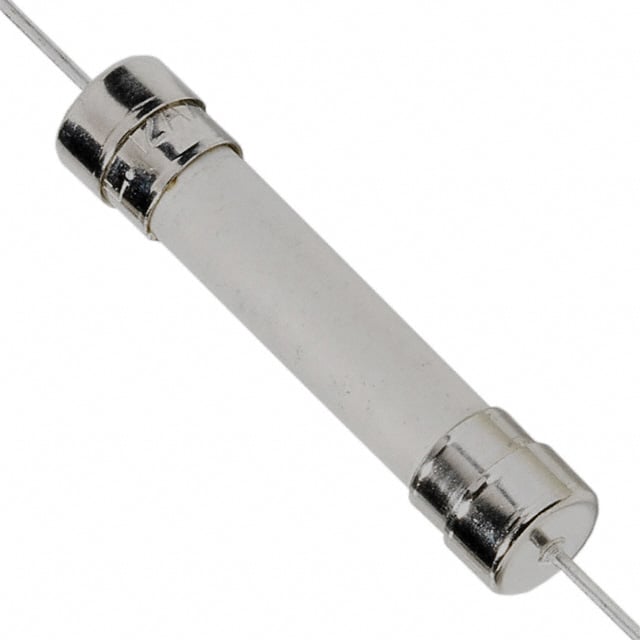

Littelfuse Inc. 0505030.MXEP
Image shown is a representation only
Manufacturer
Manufacturer No
0505030.MXEP
Quantity
523
Availability
In Stock
Package
3AB, 3AG, 1/4" x 1-1/4" (Axial)
Packaging
Bulk
Description
FUSE CERM 30A 500VAC 500VDC 3AB
Detailed Description
30 A 500 V 500 V Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
DataSheet
Mfr
Littelfuse Inc.
Series
505
Fuse Type
Cartridge, Ceramic
Packaging
Bulk
Part Status
Active
Melting I²t
280.0
Mounting Type
Through Hole
Response Time
Fast Blow
Package / Case
3AB, 3AG, 1/4" x 1-1/4" (Axial)
Approval Agency
CE, cULus
Size / Dimension
0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance
0.0038 Ohms
Voltage Rating - AC
500 V
Voltage Rating - DC
500 V
Current Rating (Amps)
30 A
Operating Temperature
-55°C ~ 125°C
Breaking Capacity @ Rated Voltage
30kA AC, 20kA DC
| Attribute | Value |
|---|---|
| Mfr | Littelfuse Inc. |
| Series | 505 |
| Fuse Type | Cartridge, Ceramic |
| Packaging | Bulk |
| Part Status | Active |
| Melting I²t | 280.0 |
| Mounting Type | Through Hole |
| Response Time | Fast Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" (Axial) |
| Approval Agency | CE, cULus |
| Size / Dimension | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) |
| DC Cold Resistance | 0.0038 Ohms |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
| Current Rating (Amps) | 30 A |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 30kA AC, 20kA DC |
