Step1: Product
Lite-On Inc. LTV-0601

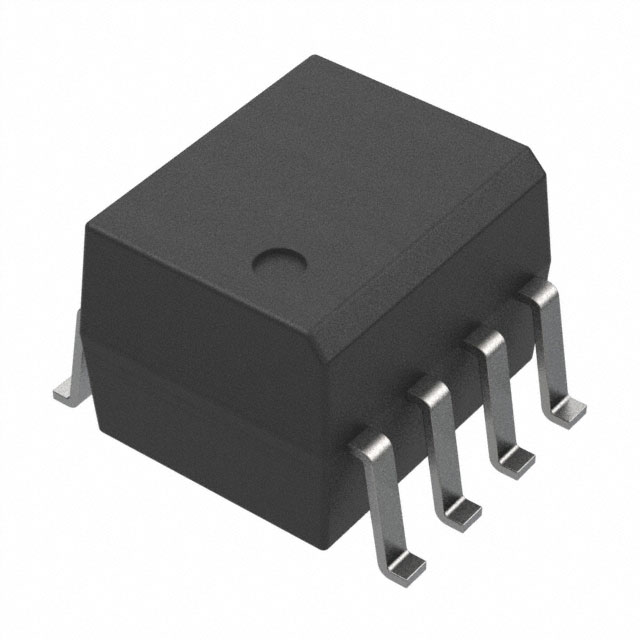

Image shown is a representation only
Manufacturer
Manufacturer No
LTV-0601
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
OPTOISO 3.75KV OPEN COLL 8-SOP
Detailed Description
Logic Output Optoisolator 15MBd Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 8-SOP
DataSheet
Data Rate
15MBd
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Input Type
DC
Output Type
Open Collector
Part Status
Active
Manufacturer
Lite-On Inc.
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Voltage - Supply
2.7V ~ 3.6V, 4.5V ~ 5.5V
Number of Channels
1
Base Product Number
LTV-06
Voltage - Isolation
3750Vrms
Operating Temperature
-40°C ~ 85°C
Inputs - Side 1/Side 2
1/0
Rise / Fall Time (Typ)
22ns, 6.9ns
Supplier Device Package
8-SOP
Current - Output / Channel
50 mA
Voltage - Forward (Vf) (Typ)
1.38V
Current - DC Forward (If) (Max)
20mA
Propagation Delay tpLH / tpHL (Max)
75ns, 75ns
Common Mode Transient Immunity (Min)
10kV/µs
| Attribute | Value |
|---|---|
| Data Rate | 15MBd |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Input Type | DC |
| Output Type | Open Collector |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Number of Channels | 1 |
| Base Product Number | LTV-06 |
| Voltage - Isolation | 3750Vrms |
| Operating Temperature | -40°C ~ 85°C |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 22ns, 6.9ns |
| Supplier Device Package | 8-SOP |
| Current - Output / Channel | 50 mA |
| Voltage - Forward (Vf) (Typ) | 1.38V |
| Current - DC Forward (If) (Max) | 20mA |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Common Mode Transient Immunity (Min) | 10kV/µs |
