Step1: Product
Lite-On Inc. LTS-30801HRB

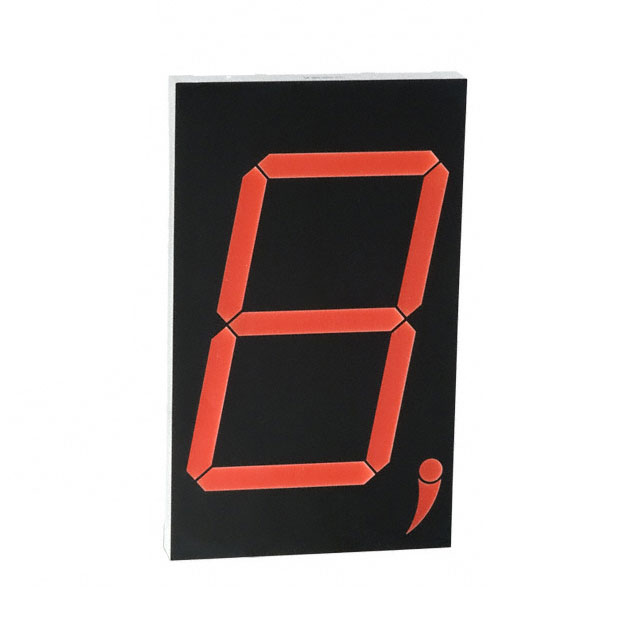

Image shown is a representation only
Manufacturer
Manufacturer No
LTS-30801HRB
Package
10-DIP (3.150", 80.00mm)
Packaging
Tray
Description
DISPLAY 7-SEG 3" SGL RED 10DIP
Detailed Description
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 12V 40mA 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm) 10-DIP (3.150", 80.00mm)
Datasheet
Color
Red
Packaging
Tray
Common Pin
Common Anode
Display Type
7-Segment
Manufacturer
Lite-On Inc.
Current - Test
40mA
Package / Case
10-DIP (3.150", 80.00mm)
Digit/Alpha Size
3.00" (76.20mm)
Size / Dimension
4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm)
Wavelength - Peak
635nm
Base Product Number
LTS-30801
Millicandela Rating
30mcd
Number of Characters
1
Power Dissipation (Max)
650mW
Voltage - Forward (Vf) (Typ)
12V
| Attribute | Value |
|---|---|
| Color | Red |
| Packaging | Tray |
| Common Pin | Common Anode |
| Display Type | 7-Segment |
| Manufacturer | Lite-On Inc. |
| Current - Test | 40mA |
| Package / Case | 10-DIP (3.150", 80.00mm) |
| Digit/Alpha Size | 3.00" (76.20mm) |
| Size / Dimension | 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm) |
| Wavelength - Peak | 635nm |
| Base Product Number | LTS-30801 |
| Millicandela Rating | 30mcd |
| Number of Characters | 1 |
| Power Dissipation (Max) | 650mW |
| Voltage - Forward (Vf) (Typ) | 12V |
