Step1: Product
Lite-On Inc. LTPL-M03618ZS40-T0

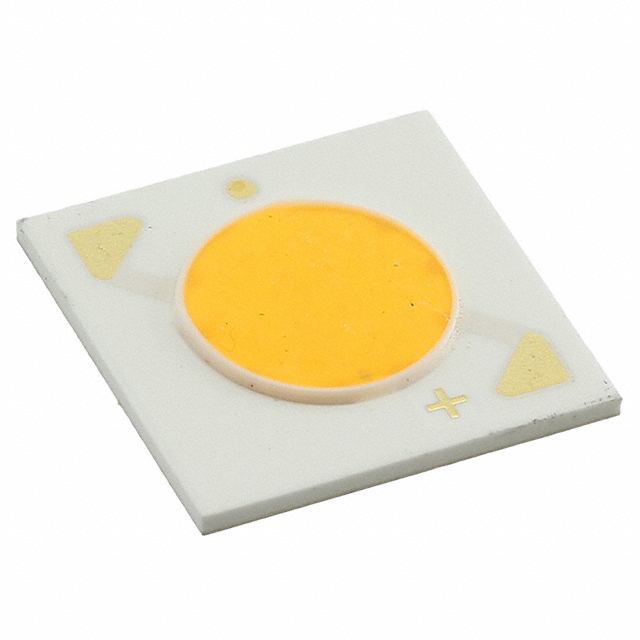

Image shown is a representation only
Manufacturer
Manufacturer No
LTPL-M03618ZS40-T0
Packaging
Tube
Description
LED COB LTPL-M03 WHT SQ 4000K
Detailed Description
LED Lighting COBs Engines Modules Chip On Board (COB) LTPL-M03 White, Neutral Square
DataSheet
Type
Chip On Board (COB)
Color
White, Neutral
Height
1.60mm
Series
LTPL-M03
CCT (K)
4000K 3-Step MacAdam Ellipse
Lens Type
Flat
Packaging
Tube
Part Status
Obsolete
Manufacturer
Lite-On Inc.
Configuration
Square
Current - Max
500mA
Viewing Angle
120°
Current - Test
450mA
Size / Dimension
15.85mm L x 15.85mm W
Temperature - Test
25°C
Base Product Number
LTPL-M03618
CRI (Color Rendering Index)
80
Light Emitting Surface (LES)
8.90mm Dia
Lumens/Watt @ Current - Test
120 lm/W
Voltage - Forward (Vf) (Typ)
39.5V
Luminous Flux @ Current/Temperature
2135lm (Typ)
| Attribute | Value |
|---|---|
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| Height | 1.60mm |
| Series | LTPL-M03 |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Lens Type | Flat |
| Packaging | Tube |
| Part Status | Obsolete |
| Manufacturer | Lite-On Inc. |
| Configuration | Square |
| Current - Max | 500mA |
| Viewing Angle | 120° |
| Current - Test | 450mA |
| Size / Dimension | 15.85mm L x 15.85mm W |
| Temperature - Test | 25°C |
| Base Product Number | LTPL-M03618 |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 8.90mm Dia |
| Lumens/Watt @ Current - Test | 120 lm/W |
| Voltage - Forward (Vf) (Typ) | 39.5V |
| Luminous Flux @ Current/Temperature | 2135lm (Typ) |
