Step1: Product

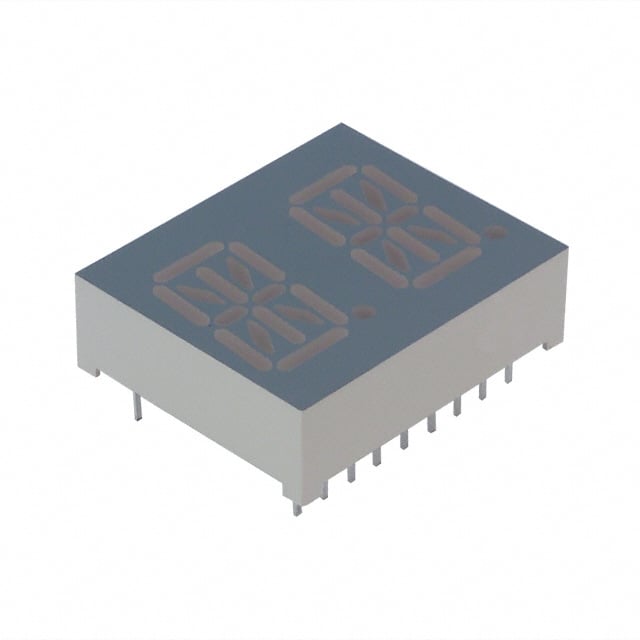

Lite-On Inc. LTP-3786E
Image shown is a representation only
Manufacturer
Manufacturer No
LTP-3786E
Package
18-DIP
Packaging
Tube
Description
DISP 14SEG 0.54" DBL OR-RD 18DIP
Detailed Description
Display Modules - LED Character and Numeric Orange-Red 14-Segment, Alphanumeric 2 Character Common Anode 2V 20mA 0.833" H x 0.992" W x 0.307" D (21.15mm x 25.20mm x 7.80mm) 18-DIP
DataSheet
Color
Orange-Red
Packaging
Tube
Common Pin
Common Anode
Part Status
Active
Display Type
14-Segment, Alphanumeric
Manufacturer
Lite-On Inc.
Current - Test
20mA
Package / Case
18-DIP
Digit/Alpha Size
0.54" (13.72mm)
Size / Dimension
0.833" H x 0.992" W x 0.307" D (21.15mm x 25.20mm x 7.80mm)
Wavelength - Peak
630nm
Base Product Number
LTP-3786
Millicandela Rating
2.3mcd
Number of Characters
2
Power Dissipation (Max)
75mW
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Color | Orange-Red |
| Packaging | Tube |
| Common Pin | Common Anode |
| Part Status | Active |
| Display Type | 14-Segment, Alphanumeric |
| Manufacturer | Lite-On Inc. |
| Current - Test | 20mA |
| Package / Case | 18-DIP |
| Digit/Alpha Size | 0.54" (13.72mm) |
| Size / Dimension | 0.833" H x 0.992" W x 0.307" D (21.15mm x 25.20mm x 7.80mm) |
| Wavelength - Peak | 630nm |
| Base Product Number | LTP-3786 |
| Millicandela Rating | 2.3mcd |
| Number of Characters | 2 |
| Power Dissipation (Max) | 75mW |
| Voltage - Forward (Vf) (Typ) | 2V |
