Step1: Product

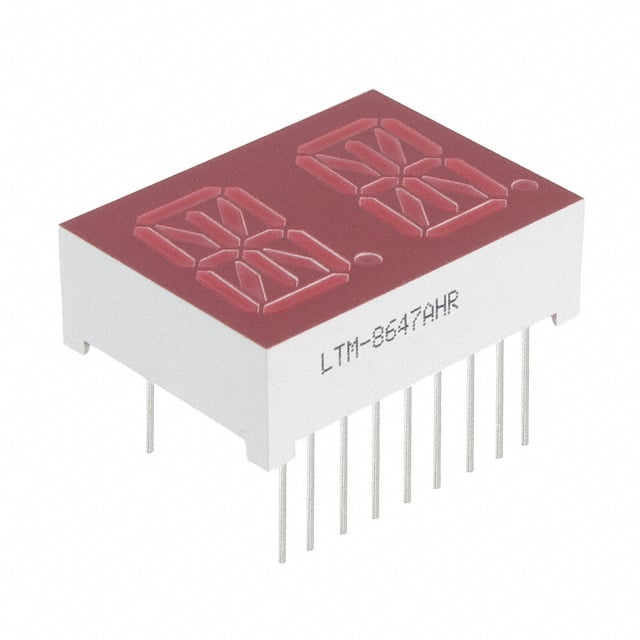

Lite-On Inc. LTM-8647AHR
Image shown is a representation only
Manufacturer
Manufacturer No
LTM-8647AHR
Package
18-DIP (0.600", 15.24mm), 12 Leads
Packaging
Tube
Description
DISP 14SEG 0.54" DBL RED 18DIP
Detailed Description
Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 2 Character Serial Input 0.4mA 0.733" H x 0.992" W x 0.326" D (18.62mm x 25.20mm x 8.27mm) 18-DIP (0.600", 15.24mm), 12 Leads
DataSheet
Color
Red
Packaging
Tube
Common Pin
Serial Input
Part Status
Active
Display Type
14-Segment, Alphanumeric
Manufacturer
Lite-On Inc.
Current - Test
0.4mA
Package / Case
18-DIP (0.600", 15.24mm), 12 Leads
Digit/Alpha Size
0.54" (13.72mm)
Size / Dimension
0.733" H x 0.992" W x 0.326" D (18.62mm x 25.20mm x 8.27mm)
Wavelength - Peak
635nm
Base Product Number
LTM-8647
Millicandela Rating
2.3mcd
Number of Characters
2
Power Dissipation (Max)
335mW
| Attribute | Value |
|---|---|
| Color | Red |
| Packaging | Tube |
| Common Pin | Serial Input |
| Part Status | Active |
| Display Type | 14-Segment, Alphanumeric |
| Manufacturer | Lite-On Inc. |
| Current - Test | 0.4mA |
| Package / Case | 18-DIP (0.600", 15.24mm), 12 Leads |
| Digit/Alpha Size | 0.54" (13.72mm) |
| Size / Dimension | 0.733" H x 0.992" W x 0.326" D (18.62mm x 25.20mm x 8.27mm) |
| Wavelength - Peak | 635nm |
| Base Product Number | LTM-8647 |
| Millicandela Rating | 2.3mcd |
| Number of Characters | 2 |
| Power Dissipation (Max) | 335mW |
