Step1: Product
Lite-On Inc. LTE-C9506B

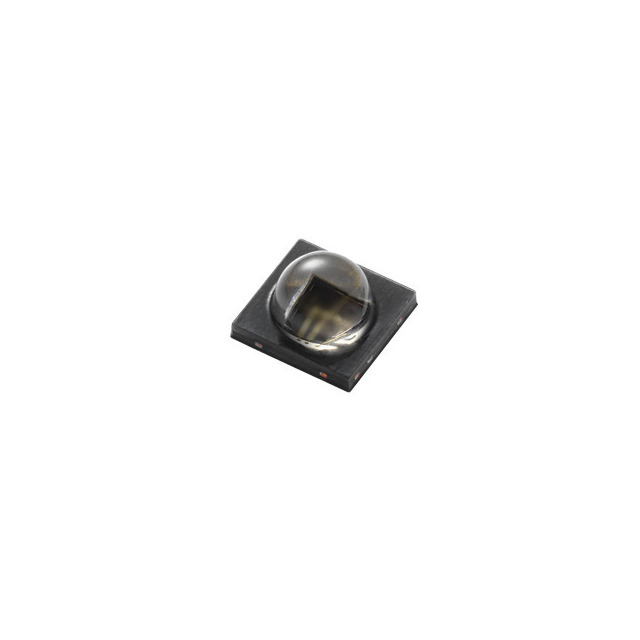

Image shown is a representation only
Manufacturer
Manufacturer No
LTE-C9506B
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR)
Description
IR EMITTER DETECTOR
Detailed Description
Infrared (IR) Emitter 850nm 1.4V 60mA 10mW/sr @ 20mA 20° 1206 (3216 Metric)
DataSheet
Type
Infrared (IR)
Packaging
Tape & Reel (TR)
Wavelength
850nm
Orientation
Top View
Part Status
Active
Manufacturer
Lite-On Inc.
Mounting Type
Surface Mount
Viewing Angle
20°
Package / Case
1206 (3216 Metric)
Base Product Number
LTE-C9506
Operating Temperature
-40°C ~ 85°C
Voltage - Forward (Vf) (Typ)
1.4V
Current - DC Forward (If) (Max)
60mA
Radiant Intensity (Ie) Min @ If
10mW/sr @ 20mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Tape & Reel (TR) |
| Wavelength | 850nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Lite-On Inc. |
| Mounting Type | Surface Mount |
| Viewing Angle | 20° |
| Package / Case | 1206 (3216 Metric) |
| Base Product Number | LTE-C9506 |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 60mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 20mA |
