Step1: Product

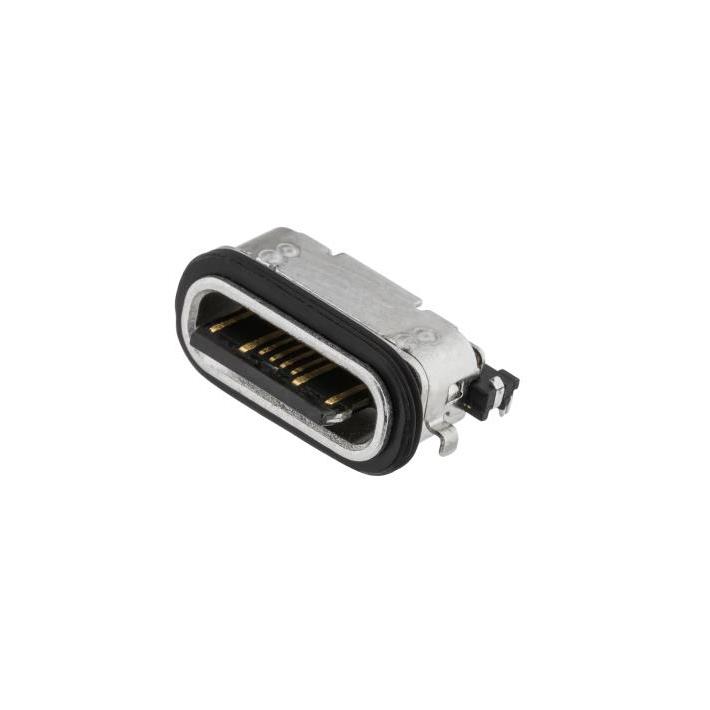

Linkplex LWP-C101D-004-J-19
Image shown is a representation only
Manufacturer
Manufacturer No
LWP-C101D-004-J-19
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
USB 2.0 TYPE C 16P IPX7
Detailed Description
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
DataSheet
Gender
Receptacle
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Part Status
Active
Manufacturer
Linkplex
Mating Cycles
10000
Mounting Type
Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Connector Type
USB-C (USB TYPE-C)
Contact Finish
Gold, Tin
Specifications
USB 2.0
Voltage - Rated
20VDC
Insulation Color
Black
Ingress Protection
IPX7 - Waterproof
Number of Contacts
24 (16+8 Dummy)
Current Rating (Amps)
0.25A, 1.25A, 5A
Operating Temperature
-25°C ~ 85°C
Shell/Shielding Material
Steel, Stainless
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Gender | Receptacle |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Part Status | Active |
| Manufacturer | Linkplex |
| Mating Cycles | 10000 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle |
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold, Tin |
| Specifications | USB 2.0 |
| Voltage - Rated | 20VDC |
| Insulation Color | Black |
| Ingress Protection | IPX7 - Waterproof |
| Number of Contacts | 24 (16+8 Dummy) |
| Current Rating (Amps) | 0.25A, 1.25A, 5A |
| Operating Temperature | -25°C ~ 85°C |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
