Step1: Product

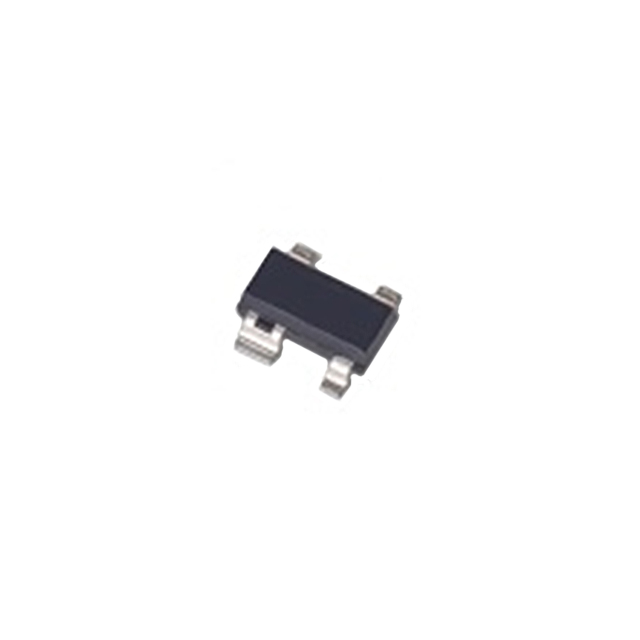

Linear Integrated Systems, Inc. SST211 SOT-143 4L ROHS
Image shown is a representation only
Manufacturer
Manufacturer No
SST211 SOT-143 4L ROHS
Package
TO-253-4, TO-253AA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
HIGH SPEED N-CHANNEL LATERAL DMO
Detailed Description
N-Channel 30 V 50mA (Ta) 300mW (Ta) Surface Mount SOT-143-4
DataSheet
Mfr
Linear Integrated Systems, Inc.
Series
SST211
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
+25V, -300mV
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-253-4, TO-253AA
Vgs(th) (Max) @ Id
1.5V @ 1µA
Operating Temperature
-55°C ~ 125°C (TJ)
Rds On (Max) @ Id, Vgs
50Ohm @ 1mA, 10V
Power Dissipation (Max)
300mW (Ta)
Supplier Device Package
SOT-143-4
Drain to Source Voltage (Vdss)
30 V
Drive Voltage (Max Rds On, Min Rds On)
5V, 25V
Current - Continuous Drain (Id) @ 25°C
50mA (Ta)
| Attribute | Value |
|---|---|
| Mfr | Linear Integrated Systems, Inc. |
| Series | SST211 |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | +25V, -300mV |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Vgs(th) (Max) @ Id | 1.5V @ 1µA |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Rds On (Max) @ Id, Vgs | 50Ohm @ 1mA, 10V |
| Power Dissipation (Max) | 300mW (Ta) |
| Supplier Device Package | SOT-143-4 |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 25V |
| Current - Continuous Drain (Id) @ 25°C | 50mA (Ta) |
