Step1: Product

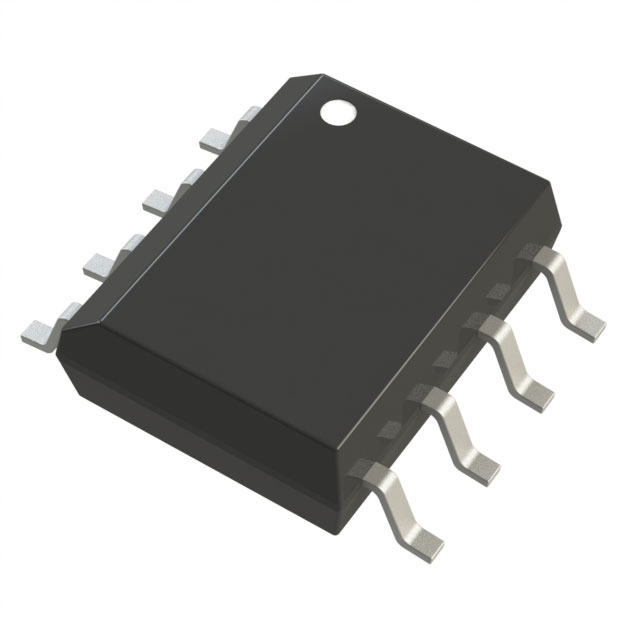

Linear Integrated Systems, Inc. LSK389B SOIC 8L ROHS
Image shown is a representation only
Manufacturer
Manufacturer No
LSK389B SOIC 8L ROHS
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
JFET 2N-CH 40V 10MA 8SOIC
Detailed Description
JFET 2 N-Channel (Dual) 40 V 10 mA 400 mW Surface Mount 8-SOIC
DataSheet
Series
LSK389
FET Type
2 N-Channel (Dual)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Power - Max
400 mW
Manufacturer
Linear Integrated Systems, Inc.
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Operating Temperature
-55°C ~ 150°C (TJ)
Supplier Device Package
8-SOIC
Current Drain (Id) - Max
10 mA
Drain to Source Voltage (Vdss)
40 V
Voltage - Breakdown (V(BR)GSS)
40 V
Voltage - Cutoff (VGS off) @ Id
300 mV @ 1 µA
Current - Drain (Idss) @ Vds (Vgs=0)
6 mA @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
25pF @ 10V
| Attribute | Value |
|---|---|
| Series | LSK389 |
| FET Type | 2 N-Channel (Dual) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Power - Max | 400 mW |
| Manufacturer | Linear Integrated Systems, Inc. |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 8-SOIC |
| Current Drain (Id) - Max | 10 mA |
| Drain to Source Voltage (Vdss) | 40 V |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Voltage - Cutoff (VGS off) @ Id | 300 mV @ 1 µA |
| Current - Drain (Idss) @ Vds (Vgs=0) | 6 mA @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 25pF @ 10V |
