Step1: Product

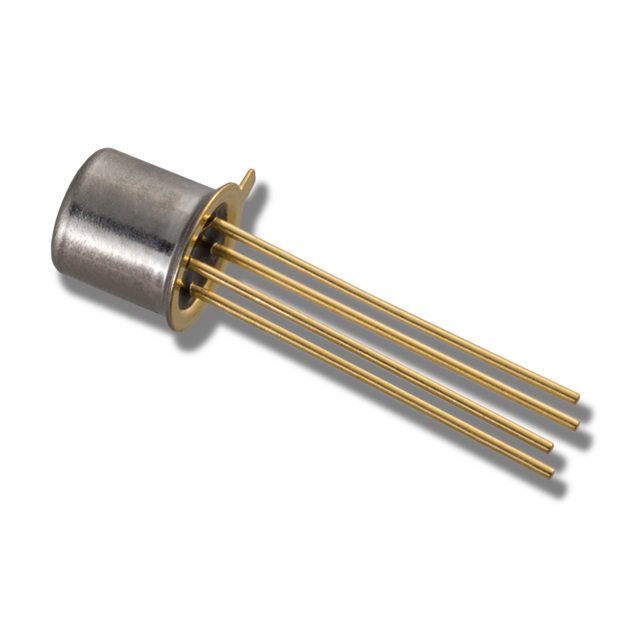

Linear Integrated Systems, Inc. DPAD100 TO-72 4L
Image shown is a representation only
Manufacturer
Manufacturer No
DPAD100 TO-72 4L
Package
TO-206AF, TO-72-4 Metal Can
Packaging
Bulk
Description
DIODE ARRAY GP 45V 50MA TO-72-4
Detailed Description
Diode Array 2 Independent 45 V 50mA Through Hole TO-206AF, TO-72-4 Metal Can
Datasheet
Speed
Small Signal =< 200mA (Io), Any Speed
Series
DPAD
Packaging
Bulk
Technology
Standard
Manufacturer
Linear Integrated Systems, Inc.
Mounting Type
Through Hole
Package / Case
TO-206AF, TO-72-4 Metal Can
Diode Configuration
2 Independent
Supplier Device Package
TO-72-4
Current - Reverse Leakage @ Vr
100 pA @ 20 V
Voltage - DC Reverse (Vr) (Max)
45 V
Operating Temperature - Junction
-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.5 V @ 1 mA
Current - Average Rectified (Io) (per Diode)
50mA
| Attribute | Value |
|---|---|
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Series | DPAD |
| Packaging | Bulk |
| Technology | Standard |
| Manufacturer | Linear Integrated Systems, Inc. |
| Mounting Type | Through Hole |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Diode Configuration | 2 Independent |
| Supplier Device Package | TO-72-4 |
| Current - Reverse Leakage @ Vr | 100 pA @ 20 V |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 mA |
| Current - Average Rectified (Io) (per Diode) | 50mA |
