Step1: Product

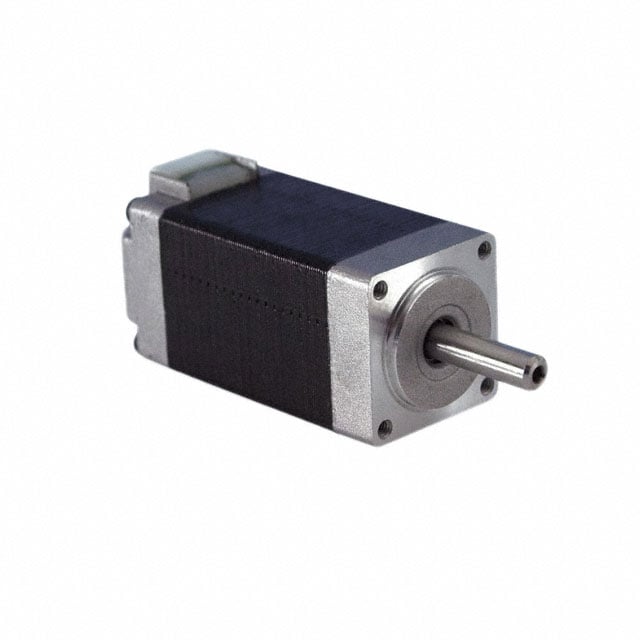

Lin Engineering WO-208-13-01-RO
Image shown is a representation only
Manufacturer
Manufacturer No
WO-208-13-01-RO
Packaging
Tray
Description
STEPPER MOTOR
Detailed Description
Bipolar Stepper Motor Frame Size 8 200.0 Step 600 mA 24VDC
DataSheet
Mfr
Lin Engineering
Features
Round Shaft
Coil Type
Bipolar
Packaging
Tray
Step Angle
1.8°
Part Status
Active
Rotor Inertia
0.044gcm²
Coil Resistance
6.5 Ohms
NEMA Frame Size
8
Voltage - Rated
24VDC
Diameter - Shaft
0.157" (4.00mm)
Size / Dimension
Square - 0.799" x 0.799" (20.30mm x 20.30mm)
Termination Style
Wire Leads
Base Product Number
WO-208-13
Steps per Revolution
200.0
Current Rating (Amps)
600 mA
Mounting Hole Spacing
0.630" (16.00mm)
Operating Temperature
-20°C ~ 50°C
Length - Shaft and Bearing
0.591" (15.00mm)
Torque - Holding (oz-in / mNm)
3 / 21.19
| Attribute | Value |
|---|---|
| Mfr | Lin Engineering |
| Features | Round Shaft |
| Coil Type | Bipolar |
| Packaging | Tray |
| Step Angle | 1.8° |
| Part Status | Active |
| Rotor Inertia | 0.044gcm² |
| Coil Resistance | 6.5 Ohms |
| NEMA Frame Size | 8 |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.157" (4.00mm) |
| Size / Dimension | Square - 0.799" x 0.799" (20.30mm x 20.30mm) |
| Termination Style | Wire Leads |
| Base Product Number | WO-208-13 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 600 mA |
| Mounting Hole Spacing | 0.630" (16.00mm) |
| Operating Temperature | -20°C ~ 50°C |
| Length - Shaft and Bearing | 0.591" (15.00mm) |
| Torque - Holding (oz-in / mNm) | 3 / 21.19 |
