Step1: Product

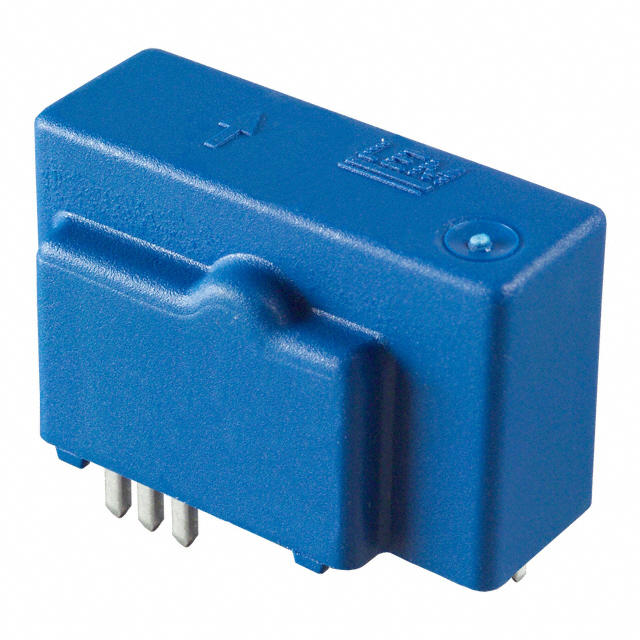

LEM USA Inc. LAH 100-P
Image shown is a representation only
Manufacturer
Manufacturer No
LAH 100-P
Package
Module
Packaging
Bulk
Description
CURRENT SENSOR HE/CL 100A
Detailed Description
Current Sensor 100A 1 Channel Hall Effect, Closed Loop Bidirectional Module
DataSheet
Mfr
LEM USA Inc.
Output
Ratiometric, Current
Series
LAH
Accuracy
±0.25%
Frequency
DC ~ 200kHz
Linearity
±0.15%
Packaging
Bulk
Part Status
Active
Sensor Type
Hall Effect, Closed Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
0.5µs
Package / Case
Module
Voltage - Supply
±12V ~ 15V
Current - Sensing
100A
Number of Channels
1
Operating Temperature
-25°C ~ 85°C
Current - Supply (Max)
60mA
| Attribute | Value |
|---|---|
| Mfr | LEM USA Inc. |
| Output | Ratiometric, Current |
| Series | LAH |
| Accuracy | ±0.25% |
| Frequency | DC ~ 200kHz |
| Linearity | ±0.15% |
| Packaging | Bulk |
| Part Status | Active |
| Sensor Type | Hall Effect, Closed Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 0.5µs |
| Package / Case | Module |
| Voltage - Supply | ±12V ~ 15V |
| Current - Sensing | 100A |
| Number of Channels | 1 |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply (Max) | 60mA |
