Step1: Product
LEM USA Inc. HX 05-P/SP31

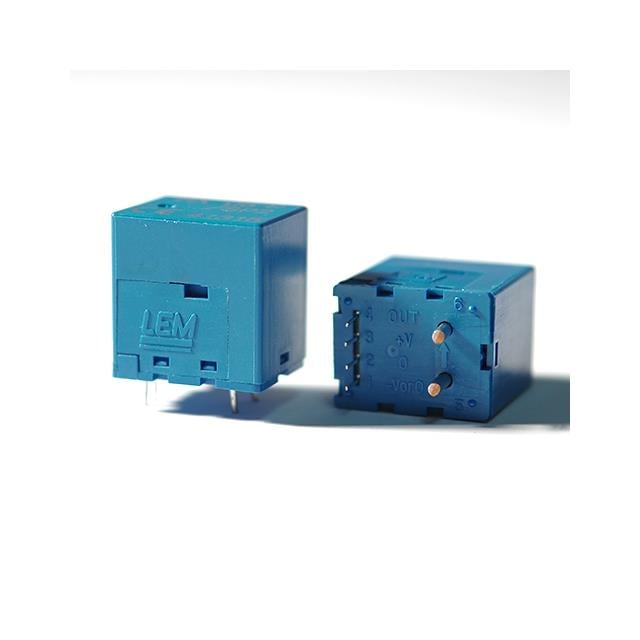

Image shown is a representation only
Manufacturer
Manufacturer No
HX 05-P/SP31
Package
Module
Packaging
Bulk
Description
CURRENT SENSOR HE/OL 5A
Detailed Description
Current Sensor 5A 1 Channel Hall Effect, Open Loop Bidirectional Module
DataSheet
Mfr
LEM USA Inc.
Output
Analog Voltage
Series
HX
Accuracy
±1.5%
Frequency
DC ~ 50kHz
Linearity
±1%
Packaging
Bulk
Part Status
Obsolete
Sensor Type
Hall Effect, Open Loop
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
5µs
Package / Case
Module
Voltage - Supply
±15V
Current - Sensing
5A
Number of Channels
1
Operating Temperature
-25°C ~ 85°C
Current - Supply (Max)
20mA
| Attribute | Value |
|---|---|
| Mfr | LEM USA Inc. |
| Output | Analog Voltage |
| Series | HX |
| Accuracy | ±1.5% |
| Frequency | DC ~ 50kHz |
| Linearity | ±1% |
| Packaging | Bulk |
| Part Status | Obsolete |
| Sensor Type | Hall Effect, Open Loop |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 5µs |
| Package / Case | Module |
| Voltage - Supply | ±15V |
| Current - Sensing | 5A |
| Number of Channels | 1 |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply (Max) | 20mA |
