Step1: Product

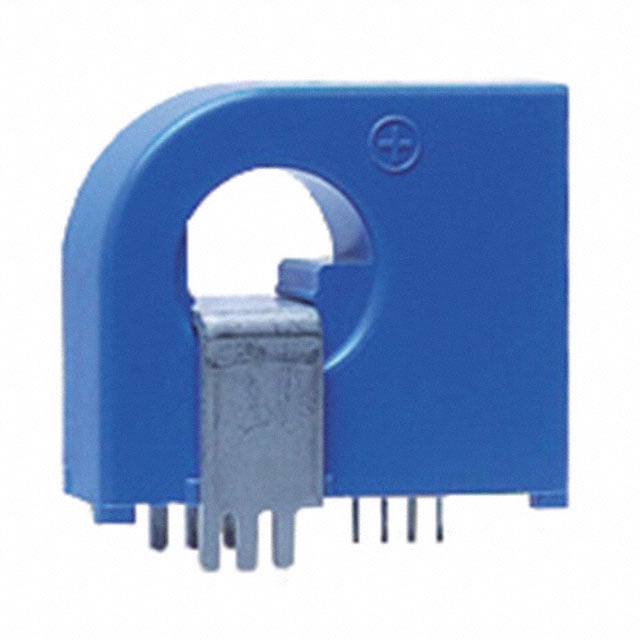

LEM USA Inc. HTB 150-P
Image shown is a representation only
Manufacturer
Manufacturer No
HTB 150-P
Package
Module, Single Pass Through
Packaging
Bulk
Description
CURRENT SENSOR HE 150A
Detailed Description
Current Sensor 150A 1 Channel Hall Effect Bidirectional Module, Single Pass Through
DataSheet
Mfr
LEM USA Inc.
Output
Analog Voltage
Series
HTB
Accuracy
±1%
Frequency
DC ~ 50kHz
Linearity
±1%
Packaging
Bulk
Part Status
Active
Sensor Type
Hall Effect
Polarization
Bidirectional
For Measuring
AC/DC
Mounting Type
Through Hole
Response Time
3µs
Package / Case
Module, Single Pass Through
Voltage - Supply
±12V ~ 15V
Current - Sensing
150A
Number of Channels
1
Operating Temperature
-20°C ~ 80°C
Current - Supply (Max)
15mA
| Attribute | Value |
|---|---|
| Mfr | LEM USA Inc. |
| Output | Analog Voltage |
| Series | HTB |
| Accuracy | ±1% |
| Frequency | DC ~ 50kHz |
| Linearity | ±1% |
| Packaging | Bulk |
| Part Status | Active |
| Sensor Type | Hall Effect |
| Polarization | Bidirectional |
| For Measuring | AC/DC |
| Mounting Type | Through Hole |
| Response Time | 3µs |
| Package / Case | Module, Single Pass Through |
| Voltage - Supply | ±12V ~ 15V |
| Current - Sensing | 150A |
| Number of Channels | 1 |
| Operating Temperature | -20°C ~ 80°C |
| Current - Supply (Max) | 15mA |
