Step1: Product

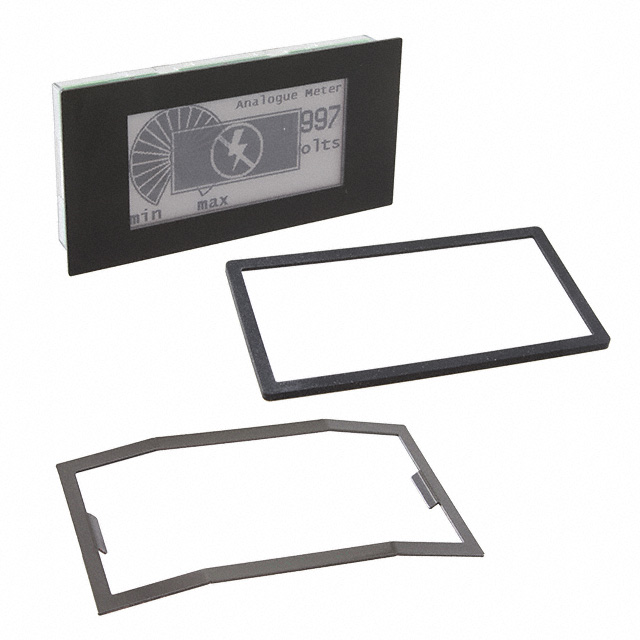

Lascar Electronics SGD 21-B
Image shown is a representation only
Manufacturer
Manufacturer No
SGD 21-B
Packaging
Box
Description
VOLTMETER 0-1.25VDC TFT PNL MNT
Detailed Description
Voltmeter TFT - Electronic Paper Display (EPD) Display Panel Mount
DataSheet
Type
Voltmeter
Series
SGD
Packaging
Box
Output Type
Solid State
Part Status
Active
Display Type
TFT - Electronic Paper Display (EPD)
Manufacturer
Lascar Electronics
Mounting Type
Panel Mount
Measuring Type
Voltage
Measuring Range
0 ~ 1.25VDC
Voltage - Supply
4 ~ 9VDC
Termination Style
PC Pin
Ingress Protection
IP54 - Dust Protected, Water Resistant
Base Product Number
SGD 21
Operating Temperature
0°C ~ 40°C
Panel Cutout Dimensions
Rectangular - 70.00mm x 34.00mm
Number of Characters Per Row
5
| Attribute | Value |
|---|---|
| Type | Voltmeter |
| Series | SGD |
| Packaging | Box |
| Output Type | Solid State |
| Part Status | Active |
| Display Type | TFT - Electronic Paper Display (EPD) |
| Manufacturer | Lascar Electronics |
| Mounting Type | Panel Mount |
| Measuring Type | Voltage |
| Measuring Range | 0 ~ 1.25VDC |
| Voltage - Supply | 4 ~ 9VDC |
| Termination Style | PC Pin |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Base Product Number | SGD 21 |
| Operating Temperature | 0°C ~ 40°C |
| Panel Cutout Dimensions | Rectangular - 70.00mm x 34.00mm |
| Number of Characters Per Row | 5 |
